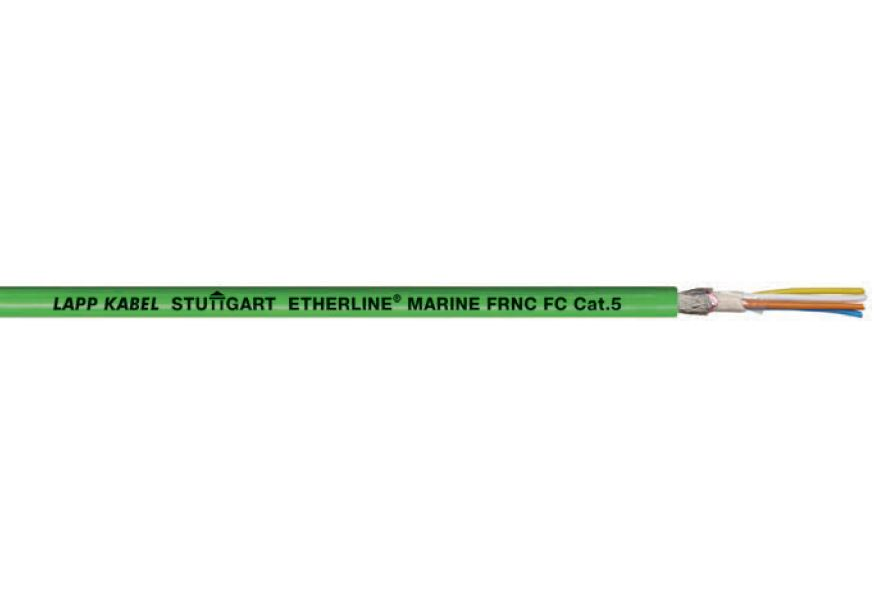

CAT5 MARINE DNV-GL FLEX

Benefits

• Can be used for Industrial Ethernet in harsh industrial environments
• For use in dry, damp and wet rooms
• Premium screening against electromagnetic interference
• 2pair: 10/100 Mbit/s for Industrial Ethernet

Application range

• Shipbuilding
• Wiring of machines, tools, devices, appliances and control cabinets
• suitable for EtherCAT and EtherNet/IP applications
• Onshore and offshore applications
• max. cable lenght für 100 Mbit/s is 85 m

Product features

• Fast Connect (FC) cable design

Norm references / Approvals

• CMG UL/CSA certification 75°C or PLTC, Sun Res
• Flame retardancy in accordance with IEC 60332-3

Product Make-up

• Fine-wire strand made of tinned-copper wires
• Colour-coded in accordance with PROFINET for Cat.5 apllications
• Star quad
• Inner sheath: thermoplastic copolymer (FRNC)
• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
• Halogen-free and flame-retardant FRNC outer sheath
• Colour: green (based on RAL 6018)

Peak operating voltage

• (not for power applications) 125 V

Temperature range

• Operating temperature: -25°C to +70°C
• During installation: 0 °C to +50 °C
