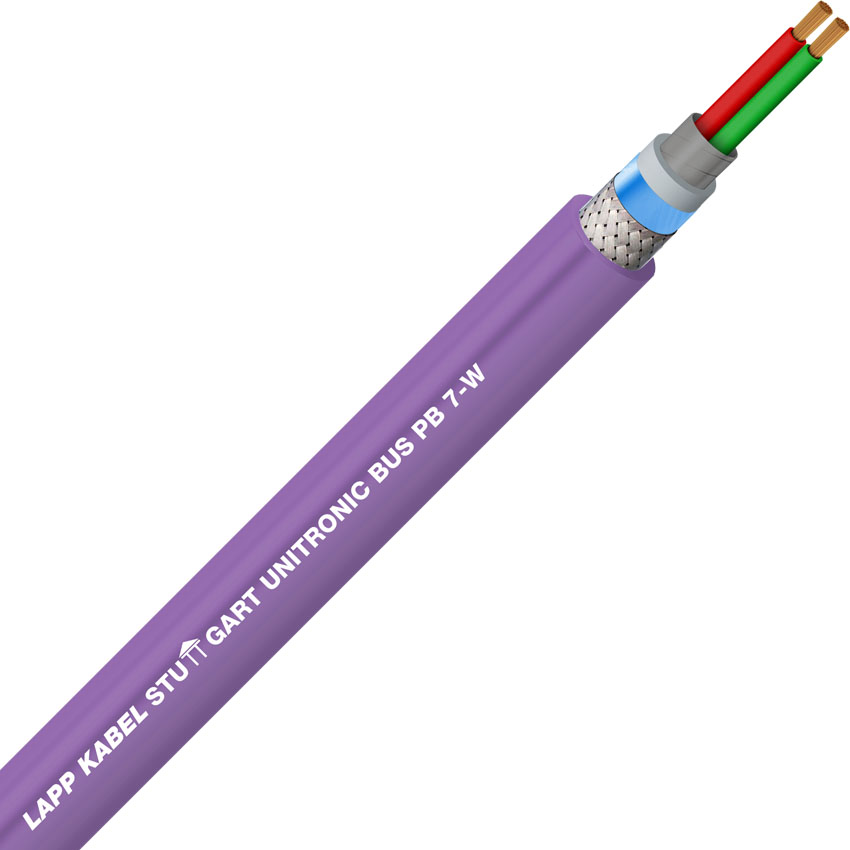

Fast Connect Vibration Profibus

Application range

• For fixed installation
  Maximum electromagnetic screening
• Dry or damp rooms
• Item nos. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant

Product features

• These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
• Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
  (cable type A, PROFIBUS-DP):
  93.75 kbit/s = 1200 m
  187.5 kbit/s = 1000 m
  500 kbit/s = 400 m
  1.5 Mbit/s = 200 m
  12.0 Mbit/s = 100 m

Norm references / Approvals

• In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)
• See below for UL certification type

Product Make-up

• FC: Fast Connect cable design
• P: Polyurethane
  H: Halogen-free
• PE: polyethylene outer sheath, black
• 7-W: 7-wire, e.g. for applications where vibrations occur
• COMBI: Data transmission and
  power supply in one cable

Peak operating voltage

• (not for power applications) 250 V
