Screw Disconnect Terminal - 4mm -WTN

Knife Disconnect Terminal Wtn 4 S Tkm

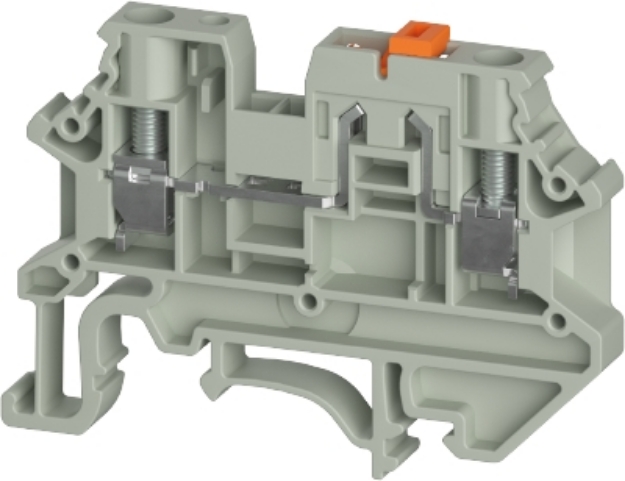

The Wieland WTN 4 S TKM knife disconnect terminal is a compact grey terminal with screw connections for DIN rail mounting. It supports conductors from 0.34 mm² to 4 mm², with a rated current of 32 A and rated voltage of 800 V.

Technical Details

• Nominal cross section: 4 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 3
• Width/grid dimension: 6.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: screw connection
• Halogen free: yes
• Rated current: 32 A
• Rated voltage: 800 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 57.8 mm
• Width: 6.1 mm
• Height: 43.5 mm
• Connection type 1: screw connection
• Connection type 2: screw connection
• Minimum cross section solid: 0.34 mm²
• Maximum cross section solid: 4 mm²
• Minimum cross section fine stranded: 0.34 mm²
• Maximum cross section fine stranded: 4 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 2.5 mm²
• Wire strip length: 10 mm
• Torque conductor mounting: 0.5 Nm
• Cross section UL: 22-10 AWG
• Voltage UL: 600 V
• Current factory wiring: 30 A
• Current field wiring: 30 A
• Cross section CSA: 22-10 AWG
• Voltage CSA: 600 V
• Current CSA: 30 A

SKU WIE-5D.SB4.2055.0
MPN 5D.SB4.2055.0
EAN 4049088725883
