Orange Flex 1x25mm

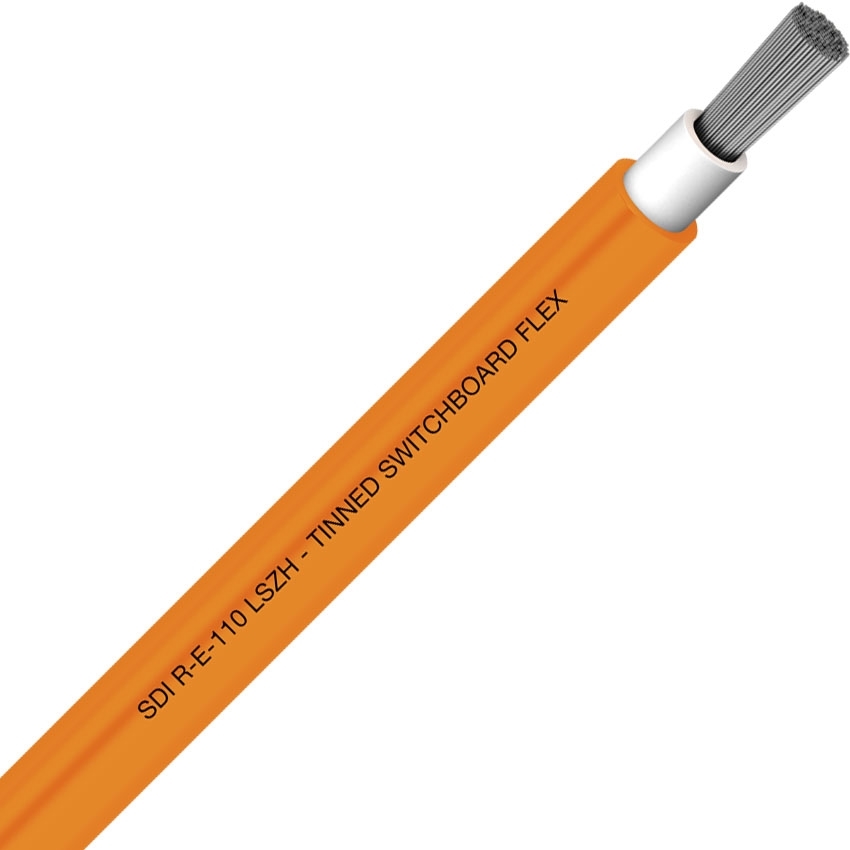

SDI Rubber Tinned Flex - 110 Degree Orange 1x25mm

Free shipping on Web orders over $100

$19.90

(Per/m excl GST)

In Stock

Quantity Breaks

1+

50+

250+

$19.90

$19.90

$19.90

SKU: LAPP-3806143 Manufacturer part number: 3806143

Qty:

Overview
Specifications
Contact Us

Product features

Halogen Free
Low Smoke
Heat resistant
Oil and chemical resistant
Flame retardant
UV and weather resistant

Application range

Switchboards and transformers
Mains power distribution
Portable power feeds
Flexible copper tails
Other industrial applications
Low Smoke Zero Halogen (LSZH) installations

Conductors

Tinned Copper Conductors
Super Flexible Class 6 Stranding

Insulation

Orange: R-E-110
Earth: X-HF-110

Outer Sheath

Orange: R-E-110 (Flexible Rubber)

Colour Of Outer Sheath

Orange or Green/Yellow
UV Resistant

Temperature Range

Orange: -25ºC to 110ºC
Earth: -40ºC to 110ºC

Voltage Rating

600/1000V

Standards

AS/NZS 5000.1
AS/NZS 3808
AS/NZS 3008
AS/NZS 1660.5.2, 1660.5.3
IEC 60228
IEC 61034-2
IEC 60754-2
IEC 60332-1

Minimum Bending Radius

5x cable OD

SKU

LAPP-3806143

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
