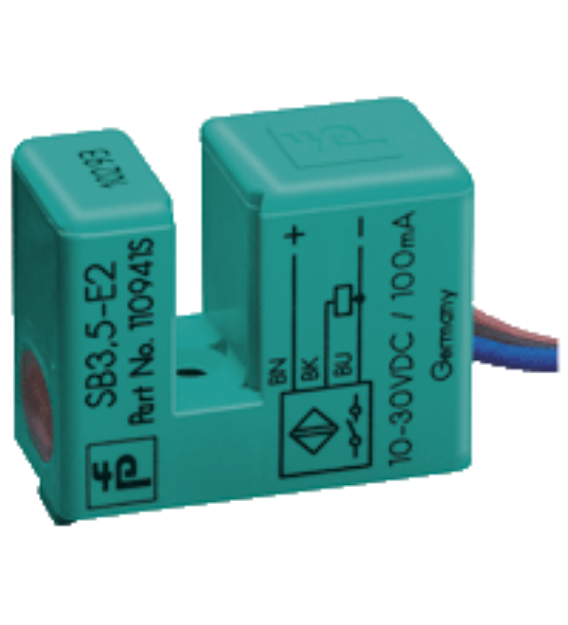

Slot Sensor SB3,5-E2

Slot Sensor, Housing: PBT, Output 3-wire, Voltage: DC, Connection flexible leads LiY , 500 mm, P67

Overview
Ask A Specialist

Technical data of SB3,5-E2

General specifications
Switching function		Normally open (NO)
Output type		PNP
Slot width		3.5 mm
Depth of immersion (lateral)		5 ... 7 mm
Output polarity		DC
Output type		3-wire
Nominal ratings
Operating voltage		10 ... 30 V DC
Switching frequency		0 ... 3000 Hz
Hysteresis		0 ... 0.6 mm
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop		≤ 3 V
Operating current		0 ... 100 mA
No-load supply current		≤ 7 mA
Switching state indicator		LED, yellow
Functional safety related parameters
MTTF_d		2590 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Approvals and certificates
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type		flexible leads LiY , 500 mm
Core cross-section		0.14 mm²
Housing material		PBT
Degree of protection		IP67

SKU

PF-110941
