Screened PUR Drag chain TP plus A 10X2X0.34

Name: Screened PUR Drag chain TP plus A 10X2X0.34
SKU: LAPP-11139520
Price: 42.10 NZD
Availability: InStock

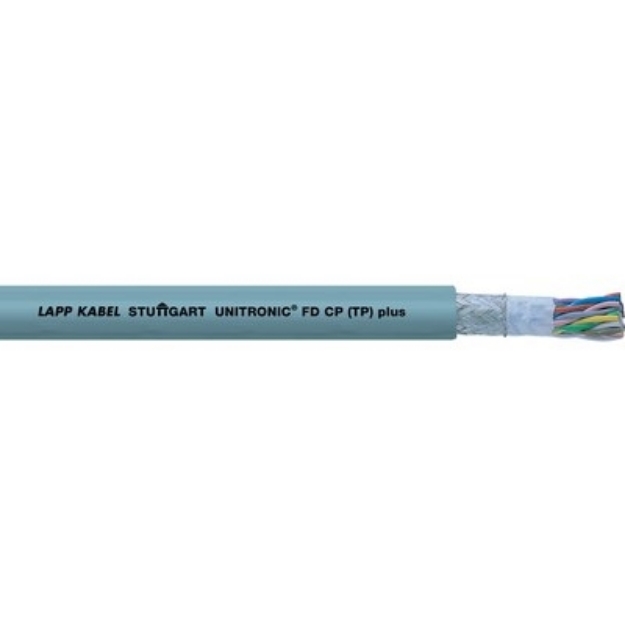

UNITRONIC® FD CP (TP) plus A, Twisted pairs, Screened, Drag chain, PUR sheath, 10X2X0.34

$42.10 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-11139520 Manufacturer part number: 11139520 Price breaks available:

Select or Type Quantity

SKU: LAPP-11139520 Manufacturer part number: 11139520 Price breaks available:

Free shipping on Web orders over $100

Overview
Downloads
Ask A Specialist

Benefits

Wide temperature range for applications in harsh climatic environments
Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
UL AWM voltage rating 1000V in case of internal wiring allows for internal laying next to power cables with applied UL rating of 1kV
In the USA inside of industrial machines, per NFPA 79, Section 12.9.2 (condition 3 under 12.9.2: Thru 1 mm² and <16 AWG)

Application range

Suitable for use in measuring, control and regulating circuits
Linear robots, automated handling equipment
Drag chain use - in case of horizontal installation travel distances up to 100 m
For use in chain/carrier: Please respect the assembly guidelines listed in Appendix T3
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

Halogen-free, has low capacitance and is flexible down to -40°C
PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion when used in power chains
Low-adhesive surface, resistant to hydrolysis and microbes, oil resistant
Flame retardance: IEC 60332-1-2, VW-1, FT2
Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 meter

Norm references / Approvals

cULus CMX certified by UL (UL: E236660)
cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576 and AWM A/B I/II

Product Make-up

Extra-fine wire strand made of bare copper wires
Core insulation: Based on Polyolefin
TP structure
Non-woven wrapping
Tinned-copper braiding
Outer sheath made of special PUR compound
Outer sheath colour: grey (RAL 7001)

Temperature range

Flexing: -40°C to +80°C
Fixed installation: -40°C to +80°C
cULus CMX: max. +75°C
cRUus AWM: max. +80°C

SKU

LAPP-11139520

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Product Files

Type Name

Data Sheet

UNITRONIC_FD CP (TP) plus A_LAPP_PRO531870EN
