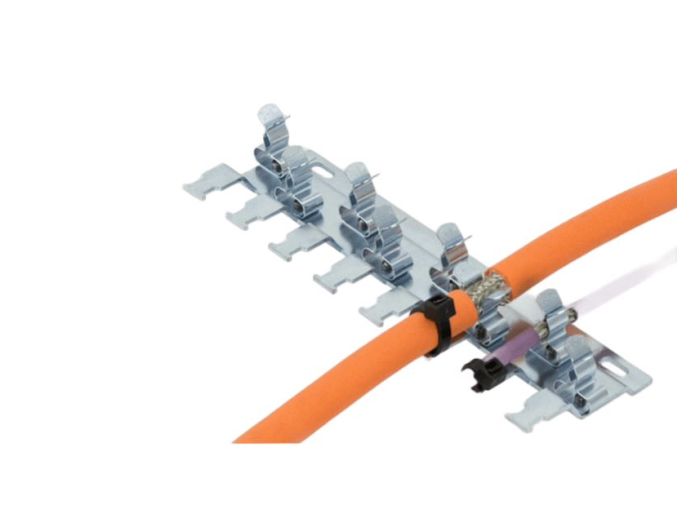

SF|RLFZ (x8)

EMC clamp assemblies are used, where the shield of several cables must be connected to the earth potential. They are easy to use and enable effective earthing and strain relief of up to 12 cables in a small space. There are different carriers available which can be user configured with up to 12 SKL or MSKL shield clamps. The shield clamps are mounted directly on the surface of the clamp assembly which guarantees a tight fit. The cables can be fixed via the cable jacket using cable ties.

The EMC shield clamps as listed below are available to mount:

• SKL 1.5-3
• SKL 3-6
• SKL 6-8
• SKL 8-11

The SKL shield clamps are assembled in a row which enables an ideal and space-saving arrangement.

The clamp assembly can be easily attached by snapping them onto 35 mm top hat DIN rails.

Advantages & Benefits

• Large contact area
• Shield contact and strain relief separated
• Easy assembly and removal
• The spring design requires no adjustments and will permanently maintain contact to the cable shield
• Shock and vibration resistant, maintenance free
• Designed for high density applications
• Possibility to configure custom specific EMC clamp assemblies

SKU ICO-38130
MPN 38130
EAN 4251269305900
