Spiral Gland M25

Name: Spiral Gland M25
SKU: LAPP-53111830
Price: 168.75 NZD
Availability: InStock

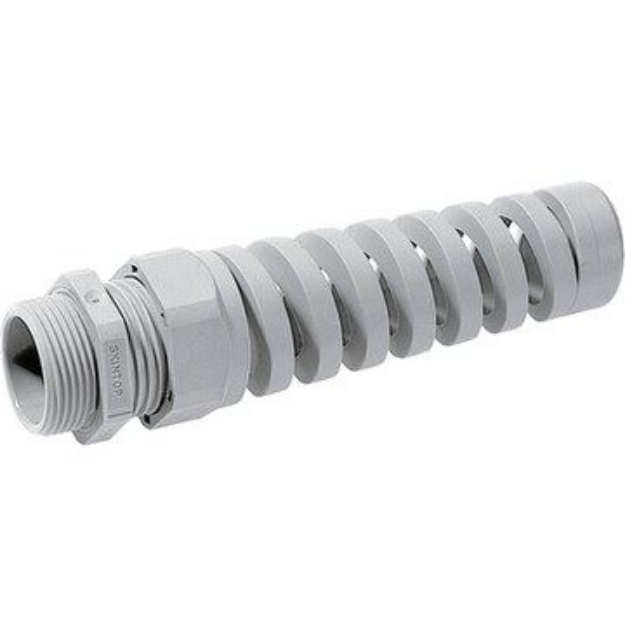

SKINTOP® BS-M25 Light Grey Gland with Bending Protection (9 to 17mm)

$168.75 (25 Pack excl GST)

(25 Pack excl GST)

Global Stock

SKU: LAPP-53111830 Manufacturer part number: 53111830 Price breaks available:

Select or Type Quantity

SKU: LAPP-53111830 Manufacturer part number: 53111830 Price breaks available:

Free shipping on Web orders over $100

Overview
Downloads
Ask A Specialist

SKINTOP® BS-M, plastic cable gland with bending and anti-kink protection, to protect flexible cables, for moving machine parts

Benefits

Reliable bending and anti-kink protection
Cable conservation
Functional reliability
To protect flexible cables

Application range

Cables for electrical appliances and machinery that are moved under normal use must be protected against excessive bending as required in accordance with VDE 0700-1
Handheld device
Robotics industry
Light and sound applications
Moving machine parts

Norm references / Approvals

UL File Nr. E79903

Product Make-up

Metric connection thread acc. to DIN EN 60423
Basis for technical information DIN IEC 62444

Note

Version with reducing insert to seal smaller cable cross-sections SKINTOP® BSR-M on request
SKINTOP® BS M ISO versions with extra-long connection thread, see table, no DNV approval

Material

Body: Polyamide
Seal: CR

Protection rating

IP 68 - 5 bar
NEMA Type 1, 12

Temperature range

-20°C to +100°C

SKU

LAPP-53111830

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 689
