Profibus PA Cable

UNITRONICĀ® BUS PA, For Process Automation 1X2X1 Blue

Free shipping on Web orders over $100

$10.60
(Per/m excl GST)
Global Stock
Quantity Breaks
1+
100+
500+
$10.60
$10.60
$10.60
SKU: LAPP-2170234 Manufacturer part number: 2170234

Benefits

  • FC (Fast Connect) version is oil and UV-resistant

Application range

  • Process-automation application for connecting sensors and actuators - including areas with risks of explosion.
  • Fixed Installation

Product features

  • Bit rate = 31.25 kbit/s. Transmission technology RS485 also possible but bit rate is limited to 1.5 Mbit/s
  • Maximum cable length is dependent on several factors (e.g. supply voltage, current demand).
  • Technical Data: refer to the overview on "UNITRONIC® Bus Cables"
  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • PROFIBUS® PA is standardised in EN 50170 as PROFIBUS® DP and PROFIBUS® FMS
  • Transmission technology for PROFIBUS-PA in accordance with international standard IEC 61158-2
  • FC variant with
    UL/CSA certification (CMG / PLTC)

Product Make-up

  • UNITRONIC® BUS PA
    Stranded conductor
    Copper braiding
    Outer sheath: PVC, blue, (RAL 5015) intrinsically safe area, black (RAL 9005)

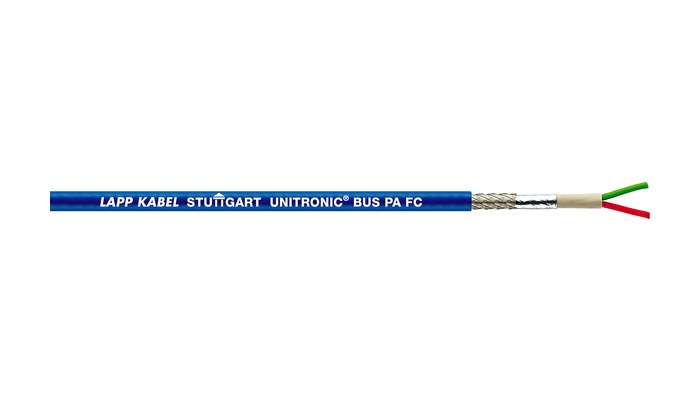

  • UNITRONIC® BUS PA FC
    Bare copper wire
    Fast Connect inner sheath
    Cu-Geflecht
    Puter sheath: PVC, blue (RAL 5015), black (RAL 9005)

Temperature range

  • Fixed installation: -30°C to +80°C
  • During installation: -5°C to +50°C

Characteristic impedance

  • 100 ± 20 Ohm

SKU
LAPP-2170234
