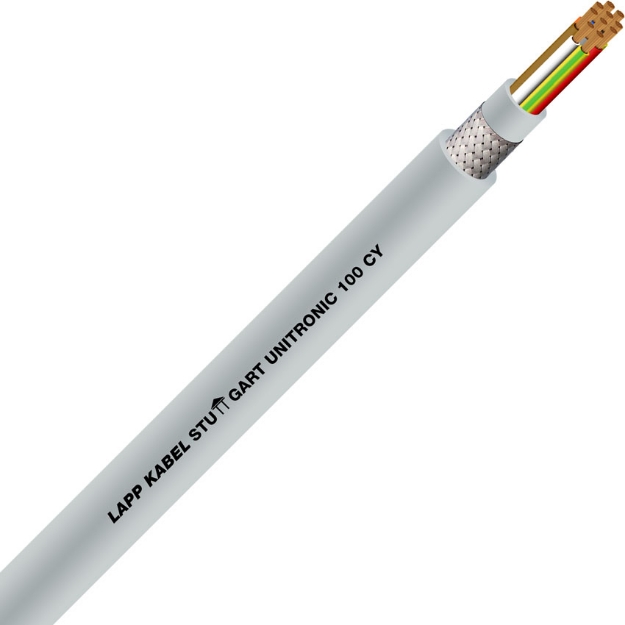

100 CY 10x0.14

Application range

• These control and signal cables are used in the milliampere range for computer systems, electronic control equipment, office machines, balances etc. and wherever the thinnest possible control cables are required.

Product features

• Robust, flexible and resistant outer sheath
• Small outer diameter despite high number of cores
• Cable similar to UNITRONIC® 100, but with copper braiding
• Flame-retardant according IEC 60332-1-2
• 3 cores with earth wire (green-yellow)
  2 cores (black/blue)

Norm references / Approvals

• Based on: VDE 0814 or VDE 0812

Product Make-up

• Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
• Core insulation made of PVC
• Inner sheath made of PVC
• For the cross section of 0.14 mm², a polyester tape is used underneath the screen braiding instead of the inner sheath.
• Tinned-copper braiding
• Outer sheath made of PVC
  Outer sheath colour: grey (RAL 7001)

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
