Connector (M12)

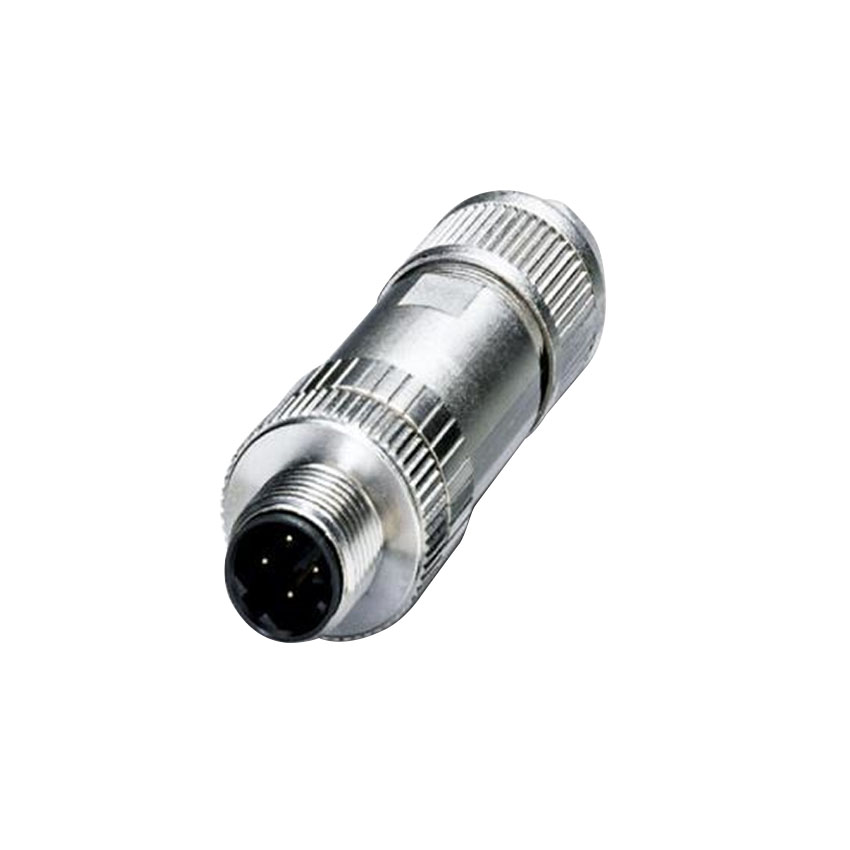

Connector (M12 D-Coded) 4 Pole Male screw termination (Ethernet)

Free shipping on Web orders over $100

$53.60

(Each excl GST)

In Stock

Quantity Breaks

25+

100+

$53.60

SKU: LAPP-22260820 Manufacturer part number: 22260820 Manufacturer: UNITRONIC®

Qty:

Overview
Specifications
Contact Us
Downloads

Bus system connector, plug, straight, 4-pos., M12 shielded, D-coded,
fast connection system, cable diameter max. 8 mm

Technical data

Lapp article number: 22260820
Nominal current IN: 1.75 A
Nominal voltage UN: 60 V
Number of poles: 4
Coding: D-coded
Contact resistance: 5 mO
Ambient temp. min. (operation)-plug/socket: -40 °C
Ambient temp. max. (operation)-plug/socket: 85 °C
Surge voltage category: II
Pollution degree: 3
Degree of protection: IP67
Status display: No
Connection type: Fast-connect connection type
Diameter min: 4 mm
Diameter max: 8 mm
Contact carrier material: PA 66
Material of grip body: Zinc die-cast, (nickel-plated)
Material, knurls: Nickel-plated brass
Sealing material: Neoprene
Inflammability class acc. to UL 94: V0
Tranmission characteristics: CAT.5 (IEC 11801:2002), CAT.5e (TIA 568B:2001)
Conductor cross section AWG 22....26
