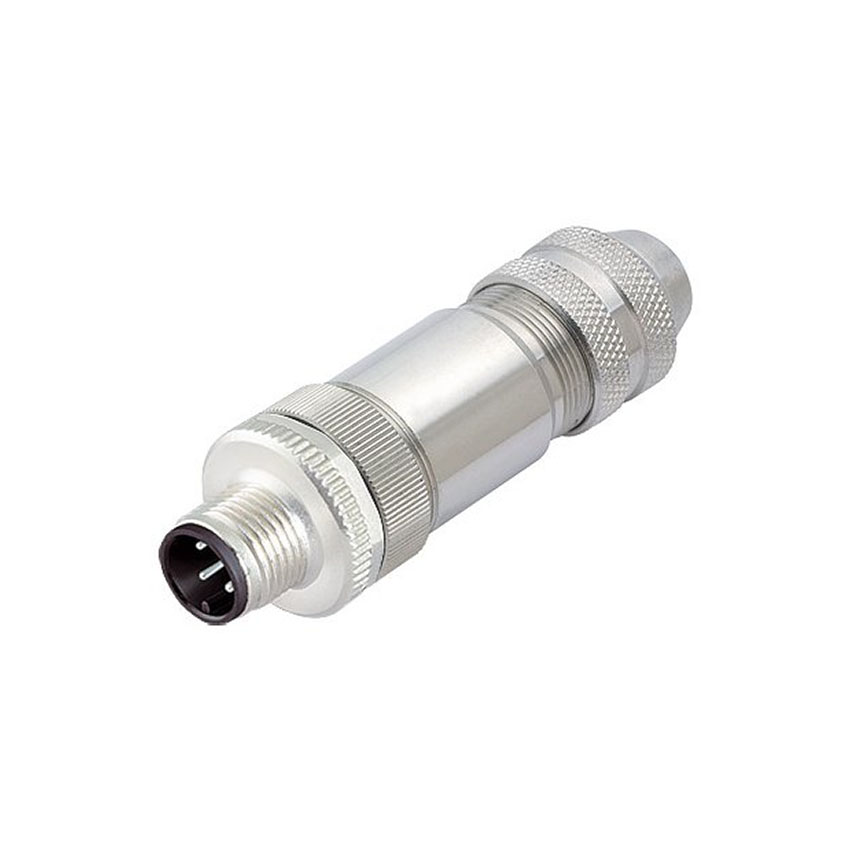

Connector (M12)

Sensor/actuator connector, male, straight, 5-pos., M12, shielded,
A-coded, screw connection, metal knurl, cable screw connection Pg9

General technical data

Coding: A-Standard
Number of poles: 5
Connection type: Screw connection
Pollution degree: 3
Rated voltage: 60 V
Rated current: 4 A
Surge voltage category: II
Contact resistance: = 3 mO
Insulation resistance: = 100 MO
Cable diameter (min): 6.0 mm
Cable diameter (max): 8.0 mm
Conductor cross section (min): 0.25 mm² (AWG 24)
Conductor cross section (max): 0.75 mm² (AWG 18)

Material data

Inflammability class acc. to UL 94: V0
Material contact: CuZn
Contact surface material: Au
Contact carrier material: PA 66
Material of grip body: Zinc die-cast, (nickel-plated)
Material, knurls: Nickel-plated brass
Sealing material: NBR
