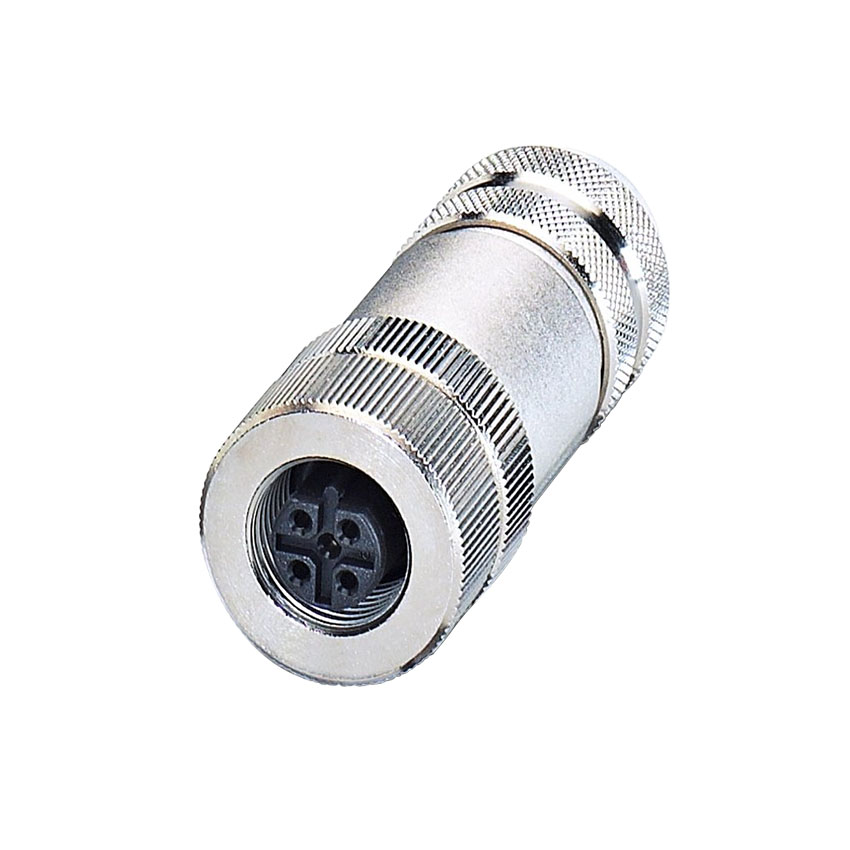

Connector (M12)

Bus system plug connector, female, straight, 5-pos., M12, shielded, gold-plated contacts,
B-coded, screw connection, metal knurl, cable screw connection Pg9

Technical data

Lapp article number: 22260646
Nominal current IN: 4 A
Nominal voltage UN: 60 V
Number of poles: 5
Coding: B - inverse
Contact resistance: 3 mO
Ambient temp. min. (operation)-
plug/socket: -40 °C
Ambient temp. max. (operation)-
plug/socket: 85 °C
Surge voltage category: II
Pollution degree: 3
Degree of protection: IP67
Status display: No
Connection type: Screw connection
Diameter min: 6 mm
Diameter max: 8.5 mm
Contact carrier material: PA 66
Contact surface material: Au
Material of grip body: Zinc die-cast, (nickel-plated)
Material, knurls: Nickel-plated brass
Sealing material: NBR
Pg screw connection: PG 9
Inflammability class acc. to UL 94: V0
