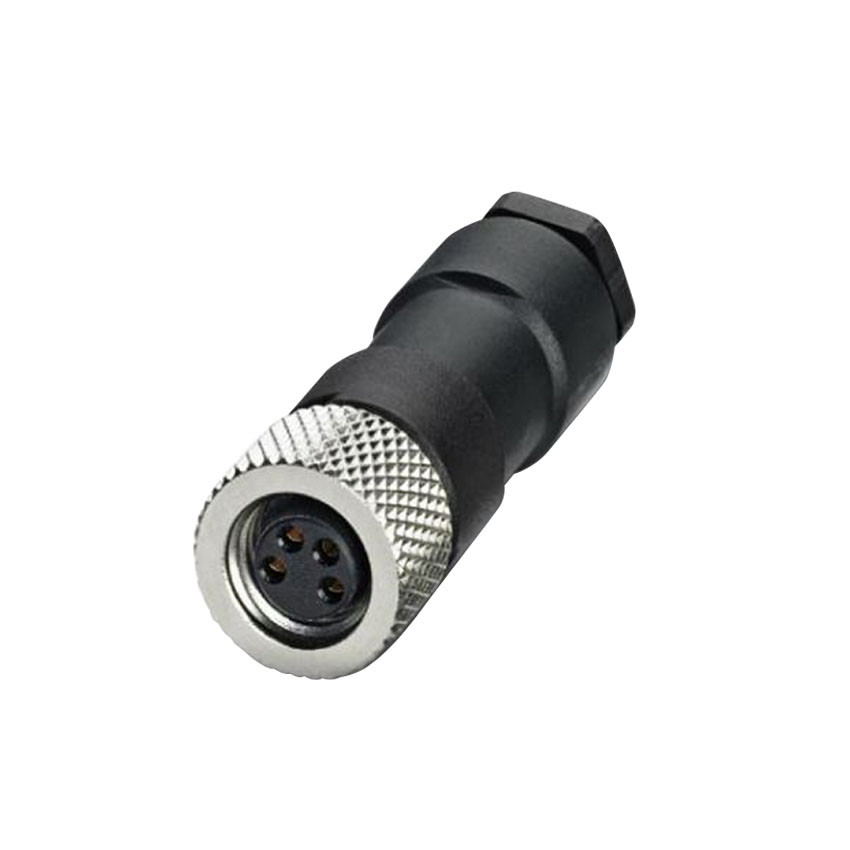

Connector (M12)

Sensor/actuator connector, female, straight, M12, 8-pos, A-coded, metal knurl,
screw connection, cable screw connection Pg9, cable diameter 6 - 8 mm

General technical data

Coding: A-standard
Number of positions: 4
Type of connection: Screw connection
Pollution degree: 8
Nominal voltage UN: 30 V
Nominal current IN: 2 A
Surge voltage category: II
Volume resistance: = 3 mO
Insulation resistance: = 100 MO
Cable diameter (min): 6,0 mm
Cable diameter (max): 8,0 mm
Conductor cross section (min): 0,25 mm² (AWG 24)
Conductor cross section (max): 0,75 mm² (AWG 18)
Pg screw connection: Pg9

Material data

Inflammability class acc. to UL 94: V0
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA
Material of grip body: PA
Material, knurls: Zinc die-cast, (nickel-plated)
Sealing material: NBR / Viton

Environmental conditions

Schutzart: IP67
Umgebungstemperatur (Betrieb): - 40 °C . + 85 °C
