PreviousMCCB - 250A
NextMCCB - 40A

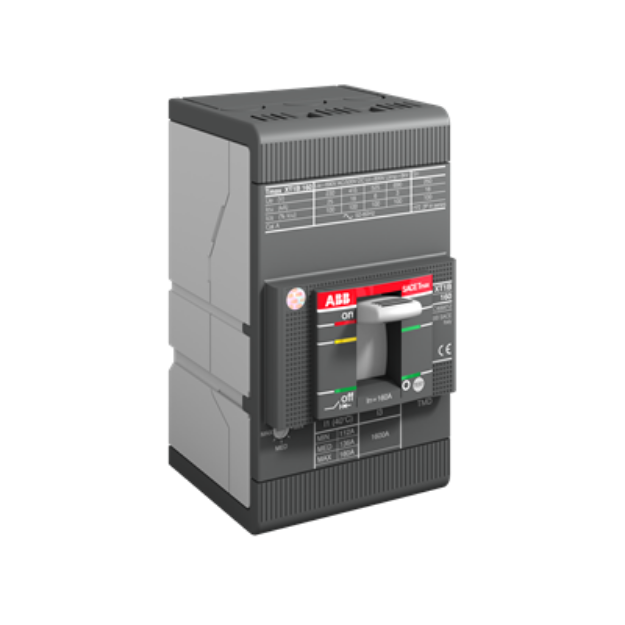

MCCB - 32A

XT1N MCCB 36kA 32A TMD

$662.00

(Each excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: ABB-1SDA067411R1 Manufacturer part number: 1SDA067411R1 Price breaks available:

Free shipping on Web orders over $100

XT1N TMD 32-450 3p F F

Circuit breaker Tmax XT1N 160, fixed three-pole, with front terminals and thermomagnetic release TMD R 32-450 A.

Technical Details

  • Product type: Molded case circuit breaker
  • Number of poles: 3P
  • Rated current: 32A
  • Rated uninterrupted current: 160A
  • Rated operational voltage: 690VAC / 500VDC
  • Rated insulation voltage: 800V
  • Rated impulse withstand voltage: 8kV
  • Rated frequency: 50/60Hz
  • Release type: TMD thermomagnetic
  • Setting range: 22.4...32A
  • Instantaneous short-circuit current setting: 450A
  • Terminal connection type: Front
  • Terminal type: Bolt
  • Short-circuit performance level: N
  • Standard: IEC 60947-2



SKU ABB-1SDA067411R1
MPN 1SDA067411R1
EAN 8015644013059

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in NZ Only Show Stocked Items
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

XT1N TMD 32-450 3p F F

Circuit breaker Tmax XT1N 160, fixed three-pole, with front terminals and thermomagnetic release TMD R 32-450 A.

Technical Details

  • Product type: Molded case circuit breaker
  • Number of poles: 3P
  • Rated current: 32A
  • Rated uninterrupted current: 160A
  • Rated operational voltage: 690VAC / 500VDC
  • Rated insulation voltage: 800V
  • Rated impulse withstand voltage: 8kV
  • Rated frequency: 50/60Hz
  • Release type: TMD thermomagnetic
  • Setting range: 22.4...32A
  • Instantaneous short-circuit current setting: 450A
  • Terminal connection type: Front
  • Terminal type: Bolt
  • Short-circuit performance level: N
  • Standard: IEC 60947-2



SKU ABB-1SDA067411R1
MPN 1SDA067411R1
EAN 8015644013059

Products specifications
Attribute name Attribute value
Locally Stocked in NZ Only Show Stocked Items
