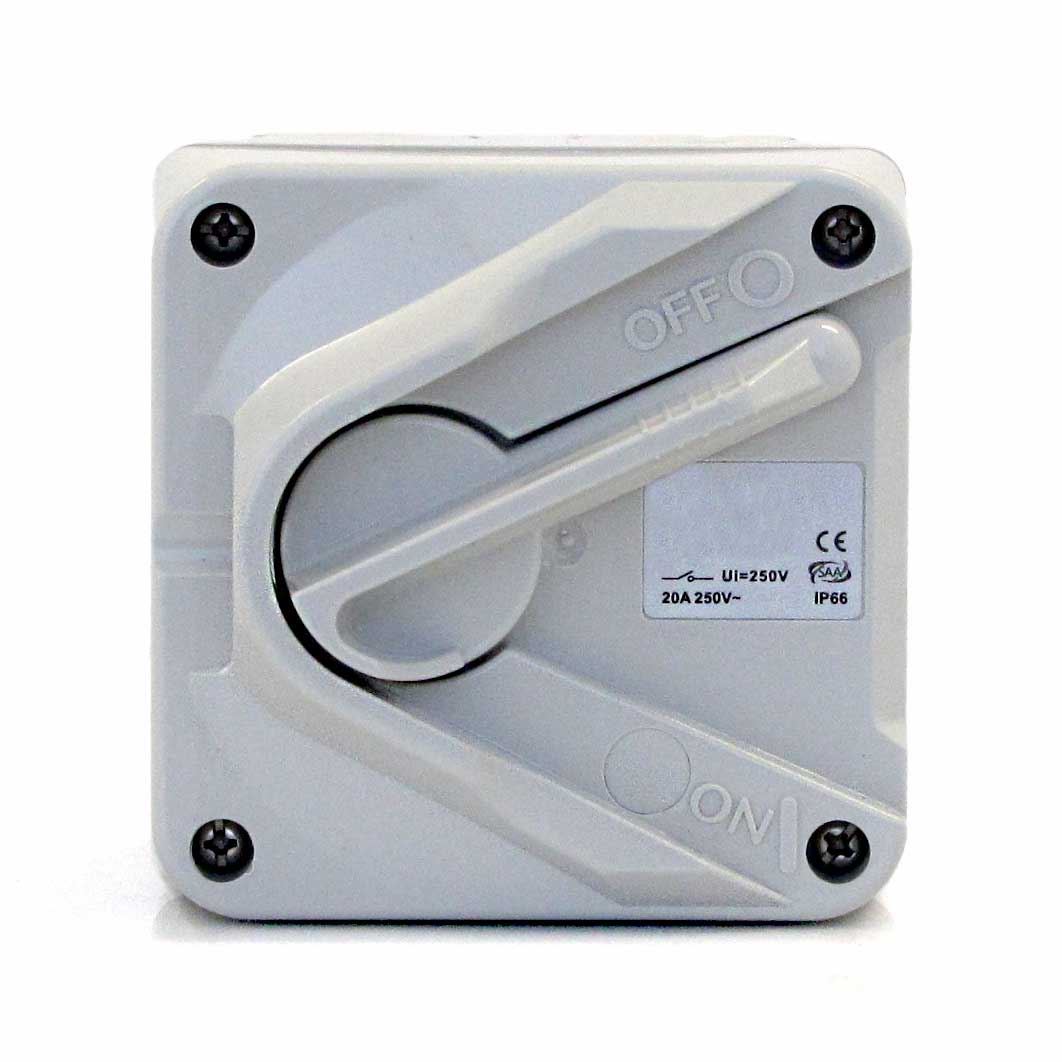

AC Mini Isolator Switch 1P 20A IP66

1 pole 20amp 250VAC 50Hz surface mount switch IP66

$25.60

(Each excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: PV-AC20A Manufacturer part number: ATL120M Price breaks available:

Free shipping on Web orders over $100

This AC isolator is perfect for mounting next to the inverter. The small and compact design looks great when installed.

Features

  • Voltage Rating: 250Vac
  • 20A Max
  • IP66
  • Lockable off position
  • UV Resistant

Knockouts (Threaded)

  • Top: 2 x M25
  • Right: 1 x M25
  • Bottom: 2 x M20
  • Left: 1 x M20
  • Rear: 1 x M25
  • Base can be rotated to change the orientation of the knockouts

Dimensions

  • 85mmH x 85mmW x 82mm Deep



sDoc available on request.


SKU
PV-AC20A
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
