Black Flex 25G1 Bk

Name: Black Flex 25G1 Bk
SKU: LAPP-1119251
Price: 37.30 NZD
Availability: InStock

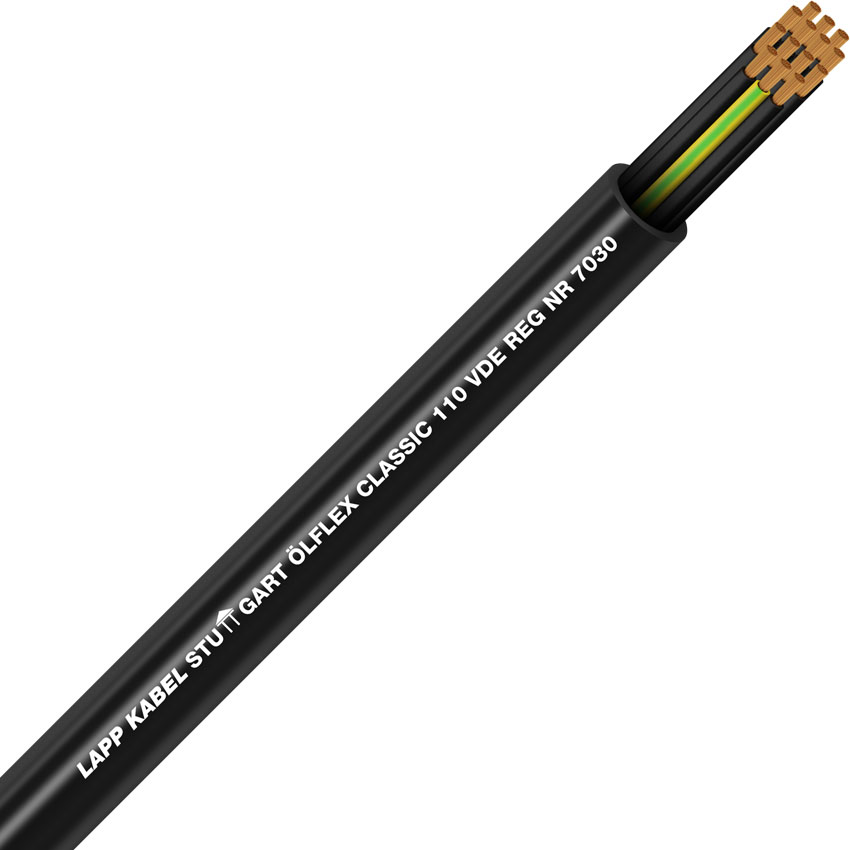

ÖLFLEX® CLASSIC 110 BK, PVC sheath, numbered cores, good for outdoor use, VDE, 25G1 (24 + E)

$37.30 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-1119251 Manufacturer part number: 1119251 Price breaks available:

Select or Type Quantity

SKU: LAPP-1119251 Manufacturer part number: 1119251 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Our most popular control cable. The ÖLFLEX^® 110 is suitable for fixed and limited flexing installations. The ÖLFLEX^® 110 has a special PVC sheath which is resistant to many oils and chemicals, making this cable suitable for most industrial installations.

Dragchain Use

ÖLFLEX^® 110 is now rated for use in dragchains
For travel distances up to 5m
Rated for 200,000 to 1 million bending cycles
For 0.5mm to 2.5mm, 2 to 7 conductors

Voltage Rating
300/500V

Temperature range
Occasional flexing: -15°C to +70°C
In power chains: -5°C to +70°C
Fixed installation: -40°C to +80°C

Benefits

Suitable for outdoor applications
Wide choice of standardized lengths and individual cuts

Application range

For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
Dry or damp rooms that are subject to medium mechanical loads
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
In power chains for a travelling distance up to 5 m and 0,2 ... 1 million bending cycles, for following dimensions: 0,5 to 2.5mm² and 2 to 7 conductors
Suitable for outdoor applications

Product features

Flame-retardant according IEC 60332-1-2
Good chemical resistance, see catalogue appendix T1
Oil-resistant according to DIN EN 50290-2-22 (TM54)
UV and weather-resistant according to ISO 4892-2

Norm references / Approvals

VDE reg. no. 7030 for the following sizes:up to 2.5 mm²: 2 - 65 coresfrom 4 mm²: 2 - 7 coresfrom 25 mm²: 2 - 5 cores

Product Make-up

Fine-wire strand made of bare copper wires
PVC insulation LAPP P8/1
Cores twisted in layers
PVC outer sheath, black (RAL 9005)

SKU

LAPP-1119251

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Number of Conductors	25
Conductor Size	1mm
Colour	Black

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 38
