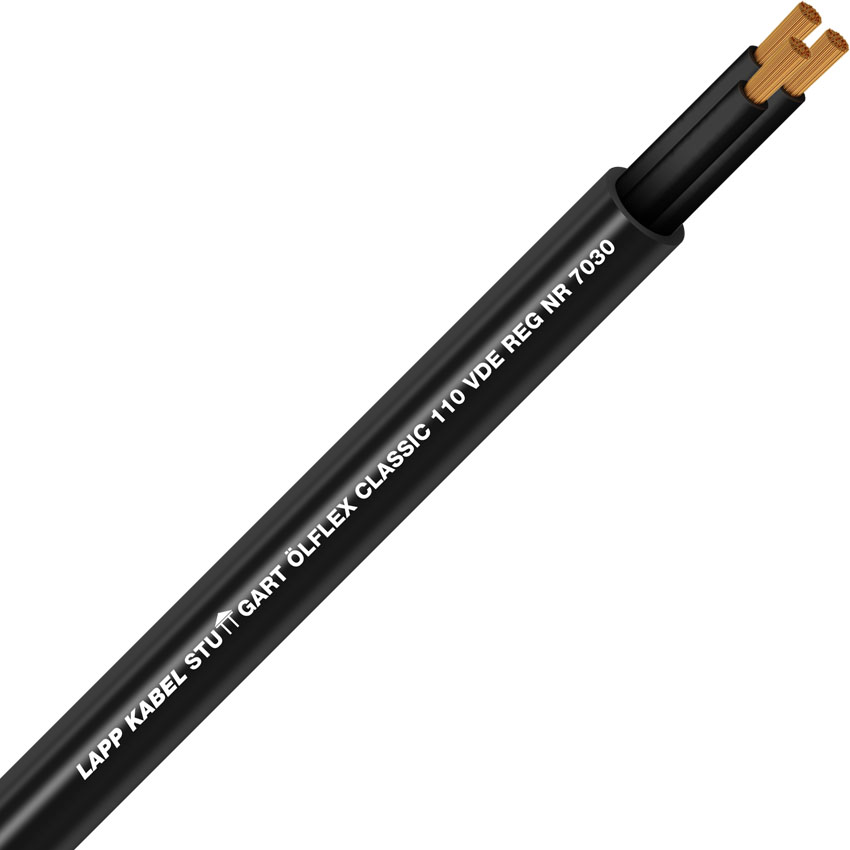

Black Flex 3X1.5 Bk

Benefits

• Suitable for outdoor applications
• Wide choice of standardized lengths and individual cuts

Application range

• For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
• Dry or damp rooms that are subject to medium mechanical loads
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
• In power chains for a travelling distance up to 5 m and 0,2 ... 1 million bending cycles, for following dimensions: 0,5 to 2.5mm² and 2 to 7 conductors
• Suitable for outdoor applications

Product features

• Flame-retardant according IEC 60332-1-2
• Good chemical resistance, see catalogue appendix T1
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• UV and weather-resistant according to ISO 4892-2

Norm references / Approvals

• VDE reg. no. 7030 for the following sizes:up to 2.5 mm²: 2 - 65 coresfrom 4 mm²: 2 - 7 coresfrom 25 mm²: 2 - 5 cores

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• Cores twisted in layers
• PVC outer sheath, black (RAL 9005)
