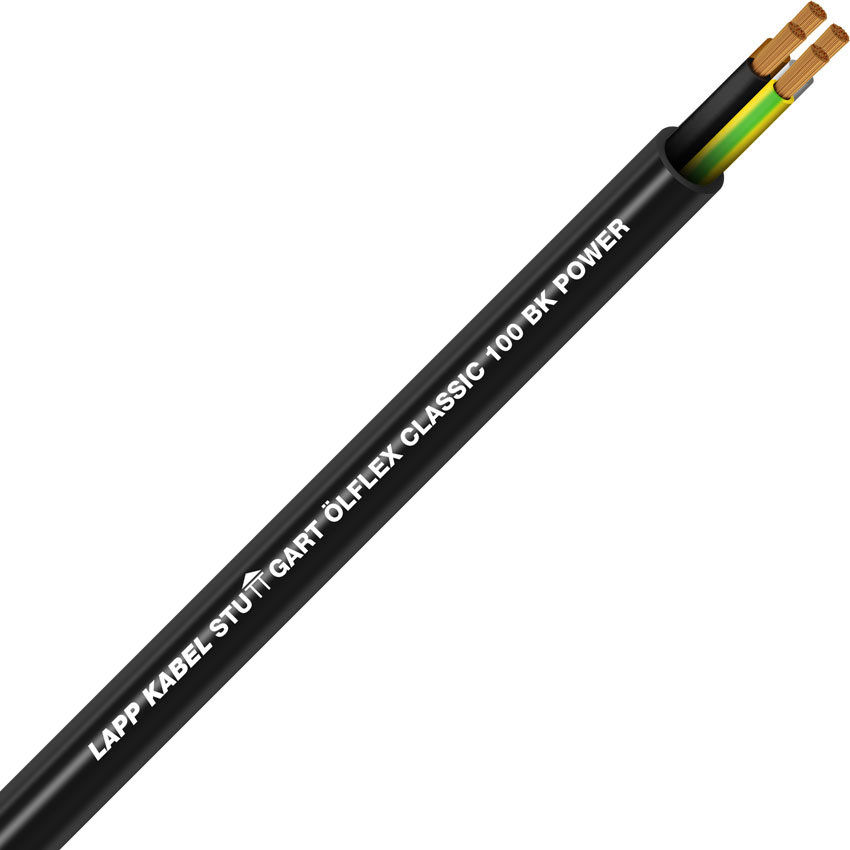

Black Flex Coloured-Cores 0.6/1 kV 4G2.5

Benefits

• High electrical performance due to 4 kV test voltage

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
  Power stations
  Stage applications
• For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
• Suitable for outdoor applications
• Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous

Product features

• Flame-retardant according IEC 60332-1-2
• UV and weather-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396
• Flexible down to -30°C

Product Make-up

• Fine-wire strand made of bare copper wires
• Core insulation: PVC, cold-resistant
• PVC outer sheath, cold-resistant, black (RAL 9005)

Temperature range

• Occasional flexing: -30°C to +70°C
• Fixed installation: -40°C to +80°C
