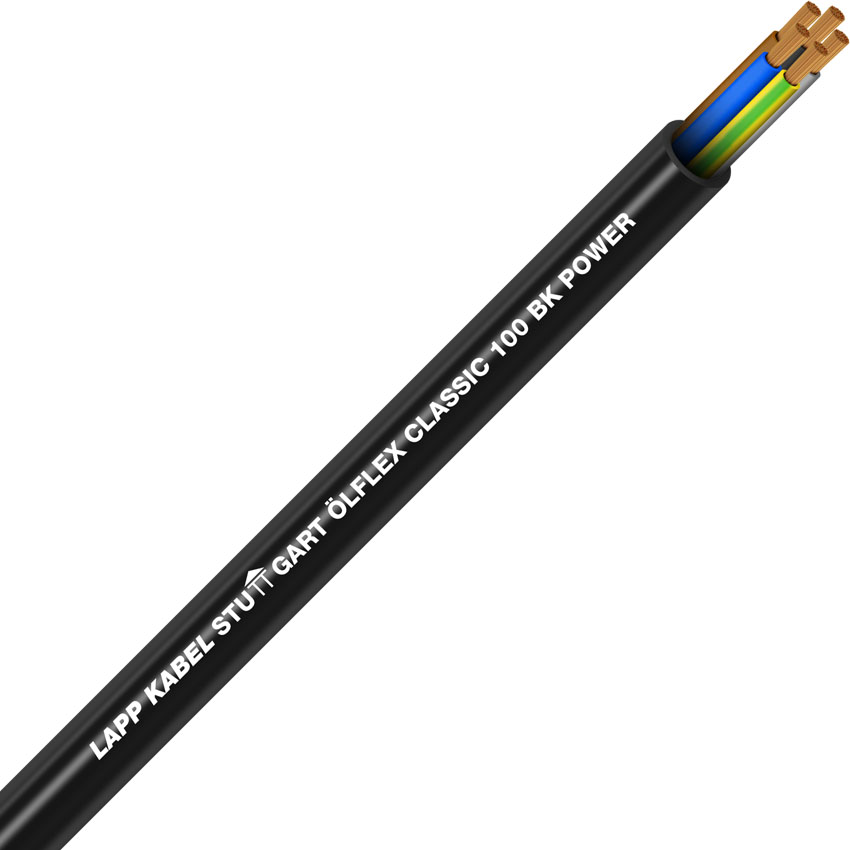

Black Flex Coloured-Cores 0.6/1 kV 5G1.0

ÖLFLEX® CLASSIC 100 BK, PVC sheath, coloured cores, good for outdoor use, 0.6/1 kV 5G1.0 (4 + E)

Free shipping on Web orders over $100

$12.80
(Per/m excl GST)
Global Stock
Quantity Breaks
1+
50+
250+
$12.80
$12.80
$12.80
SKU: LAPP-1120459 Manufacturer part number: 1120459

Benefits

  • High electrical performance due to 4 kV test voltage

Application range

  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
    Power stations
    Stage applications
  • For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
  • Suitable for outdoor applications
  • Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous

Product features

  • Flame-retardant according IEC 60332-1-2
  • UV and weather-resistant according to ISO 4892-2
  • Ozone-resistant according to EN 50396
  • Flexible down to -30°C

Product Make-up

  • Fine-wire strand made of bare copper wires
  • Core insulation: PVC, cold-resistant
  • PVC outer sheath, cold-resistant, black (RAL 9005)

Temperature range

  • Occasional flexing: -30°C to +70°C
  • Fixed installation: -40°C to +80°C

SKU
LAPP-1120459
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 5
Conductor Size 1mm
Colour Black
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Benefits

  • High electrical performance due to 4 kV test voltage

Application range

  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
    Power stations
    Stage applications
  • For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
  • Suitable for outdoor applications
  • Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous

Product features

  • Flame-retardant according IEC 60332-1-2
  • UV and weather-resistant according to ISO 4892-2
  • Ozone-resistant according to EN 50396
  • Flexible down to -30°C

Product Make-up

  • Fine-wire strand made of bare copper wires
  • Core insulation: PVC, cold-resistant
  • PVC outer sheath, cold-resistant, black (RAL 9005)

Temperature range

  • Occasional flexing: -30°C to +70°C
  • Fixed installation: -40°C to +80°C

SKU
LAPP-1120459
Products specifications
Attribute name Attribute value
Number of Conductors 5
Conductor Size 1mm
Colour Black
