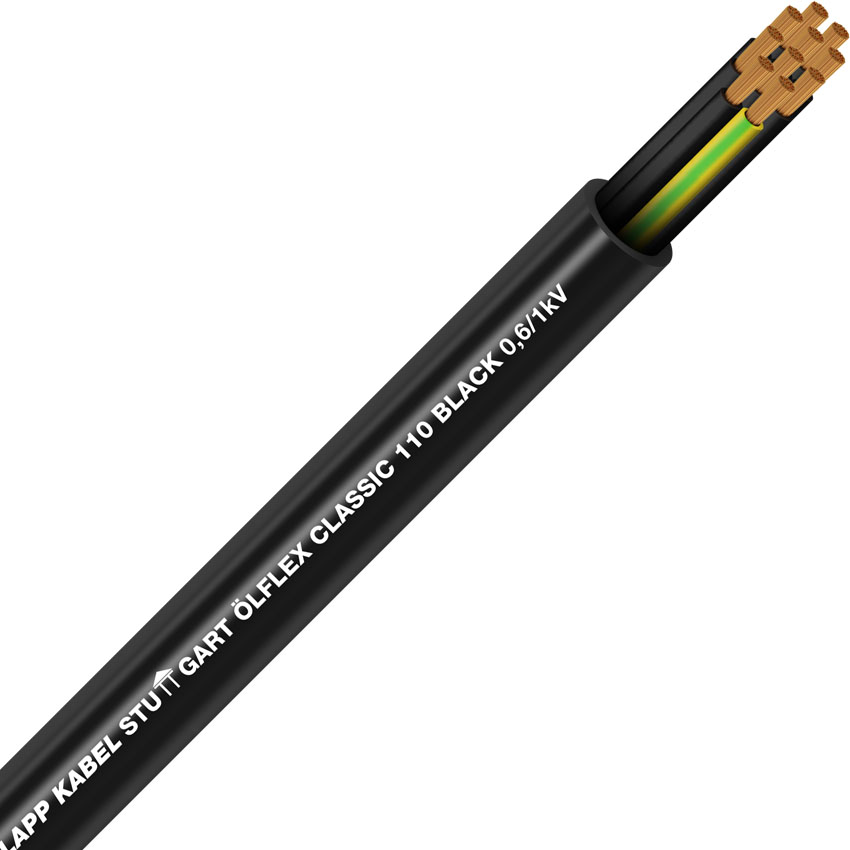

Black Flex Numbered 600/1000V 7G4

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
  Power stations
  Stage applications
• For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
• Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

• Flame-retardant according IEC 60332-1-2
• UV and weather-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396

Norm references / Approvals

• Based on VDE 0250-1 and HD 627-1 S1

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• PVC outer sheath, black (RAL 9005)
