Black Heavy-Duty Rubber Flex 1X4

Name: Black Heavy-Duty Rubber Flex 1X4
SKU: LAPP-1600097
Price: 8.47 NZD
Availability: InStock

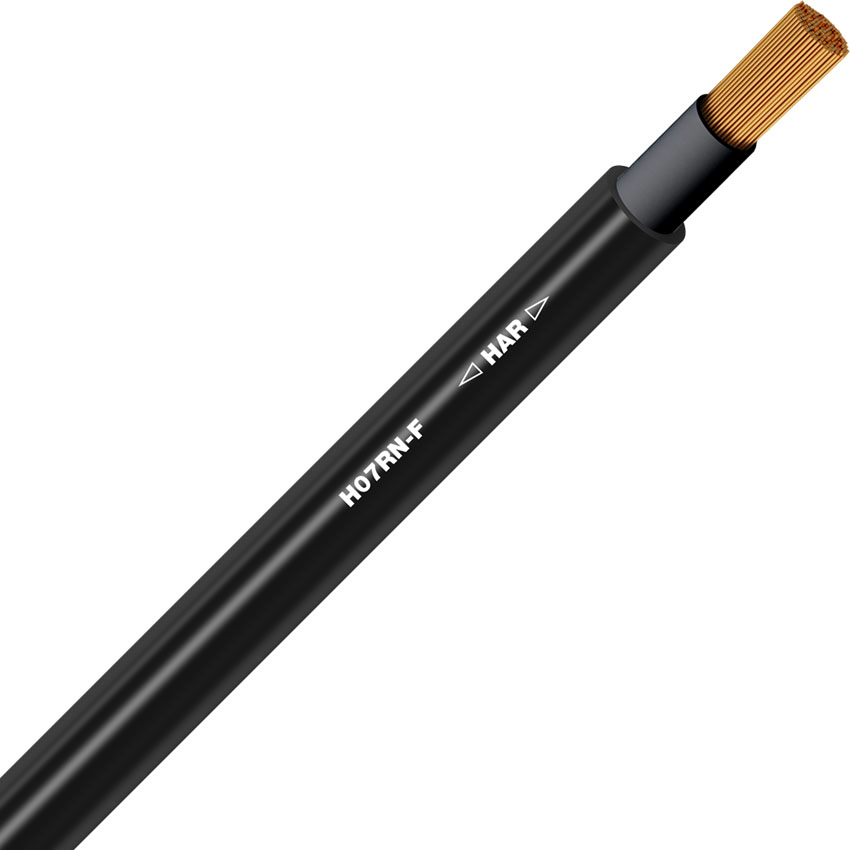

H07RN-F, Single-core black rubber cable, medium mechanical stress, HAR approval 1X4

$8.47 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-1600097 Manufacturer part number: LAPP-1600097 Price breaks available:

Select or Type Quantity

SKU: LAPP-1600097 Manufacturer part number: LAPP-1600097 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Ask A Specialist

Benefits

For mechanically more demanding applications
1000 V AC at protected + static laying
Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with IEC 60364-5-52/ HD 60364-5-52/ VDE 0100 Part 520

Application range

Handheld and power supply devices according to EN 50565-2
Medium, mechanical stress
Industrial, agricultural use
According to EN 50565-2: In dry, damp and wet rooms as well as for fixed installation e.g. on the plaster

Product features

Flame-retardant according IEC 60332-1-2
Oil-resistant according to EN 60811-404

Norm references / Approvals

<HAR> H07RN-F cable type approval according to EN 50525-2-21

Product Make-up

Bare copper wire according to HAR
Core insulation: rubber compound, type EI 4
Outer sheath: rubber compound, type EM2

SKU

LAPP-1600097

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Number of Conductors	1
Conductor Size	4mm
Colour	Black
