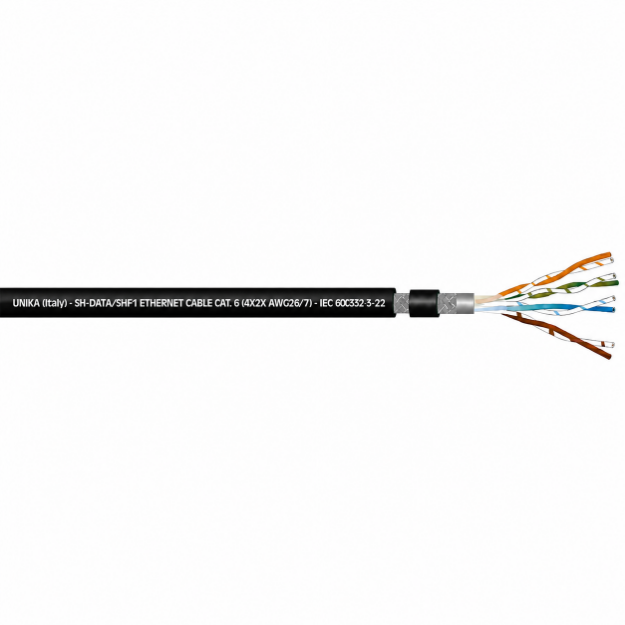

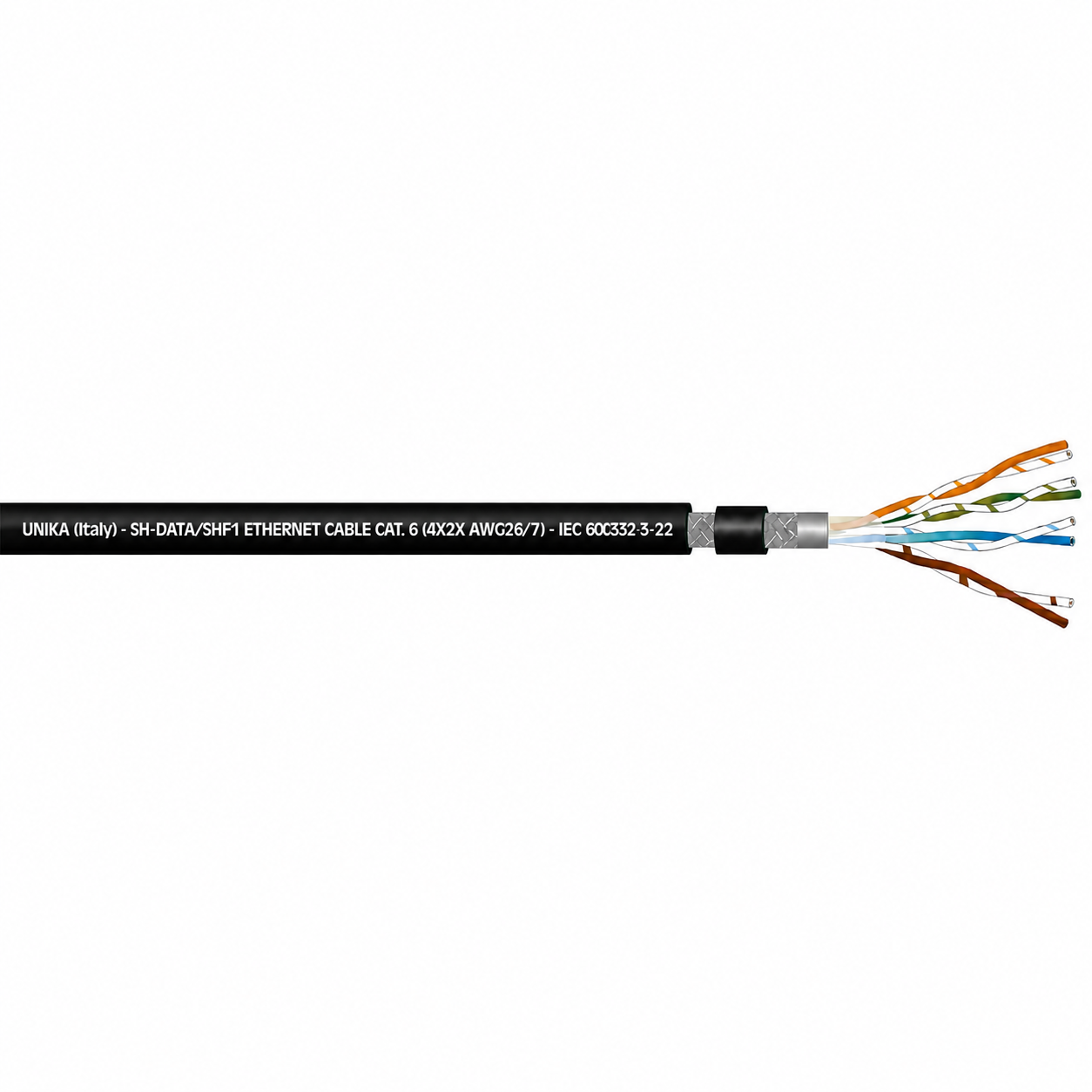

CAT6 Marine 4x2x26 AWG

SH-DATA Ethernet Cat.6 4x2x26 AWG SF/UTP

$10.60

(Per/m excl GST)
Global Stock
Login for stock
Select or Type Quantity
SKU: LAPP-NP404B Manufacturer part number: NP404B Price breaks available:

Free shipping on Web orders over $100

SH-DATA Ethernet Cat.6

Ethernet cable approved for marine and offshore use

  • Marine-certified Cat 6 Ethernet cable
  • Designed for harsh offshore environments
  • Halogen-free and low-smoke
  • Available in heavier 26 AWG
  • Suitable for shipboard LAN systems, automation, and data networks
  • Resistant to UV, oil, and seawater (SHF2 version)

Construction

  • Conductors: bare copper 26 AWG.
  • Insulation: foam-skin polyolefin.
  • Pair shielding: aluminum/polyester tape on each pair.
  • Overall shielding: braided tinned copper (specified with high coverage) plus an overall tape shield.
  • Outer jacket: marine compounds (SHF1 / SHF2) with grey or black jacket options.

Fire performance

  • Designed to meet key marine fire and smoke requirements (flame propagation, low smoke, and low corrosive/halogen-free behavior).
  • IEC 60332-1-2 (flame propagation)
  • IEC 60332-3-22 (bunched cable fire test)
  • IEC 61034 (low smoke density)
  • IEC 60754 (halogen-free, low corrosivity)



SKU LAPP-NP404B
MPN NP404B

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 8
Number of Pairs 4
Conductor Size 26 AWG (0.14mm)
Product Files
Type Name
LAPP-NP404B
Datasheet
*
*
*
