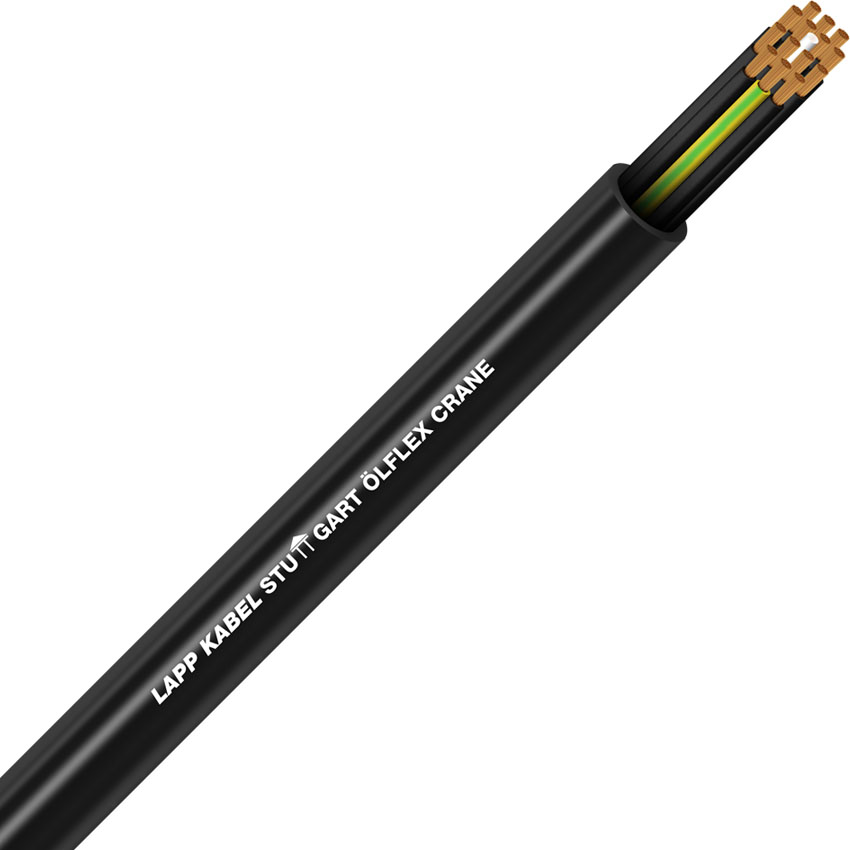

Crane Flex 24G1

Benefits

• Weather-resistant for harsh environmental conditions
• Very flexible due to extra-fine wire conductor design
• Cables up to a max. 24 cores can also be used in power chains

Application range

• Machinery and equipment that are permanently exposed to the weather; conveying and hoisting equipment; construction machinery; shipyard machinery
• Suitable for use in special conditions, such as not more than 2 weeks without interruption of submersion in industrial or sea water
• The application profiles for ÖLFLEX^® CRANE and ÖLFLEX^® LIFT cables can be found in the appendix, selection table A3
• The assembly and handling guidelines for ÖLFLEX^® CRANE cables can be found in the catalogue appendix, technical table T4; for ÖLFLEX^® LIFT cables please see the catalogue appendix, technical table T5
• For highly flexible applications, please follow the assembly guidelines for ÖLFLEX^® FD cables in power chains; see appendix T3

Product features

• Flame-retardant according IEC 60332-1-2
• Not suitable for use on guide pulleys or drums under tensile load
• Refer to the article table for the tensile strength of the support element
• The cable should be installed in a way that the supporting element can absorb the tensile forces
• The mobility of the cores must not be affected by the clamps

Norm references / Approvals

• Based on VDE 0250

Product Make-up

• Conductor made of bare copper wires
• Core insulation: rubber compound
• Special supporting element as strain relief
• Outer sheath: rubber compound, type EM2
