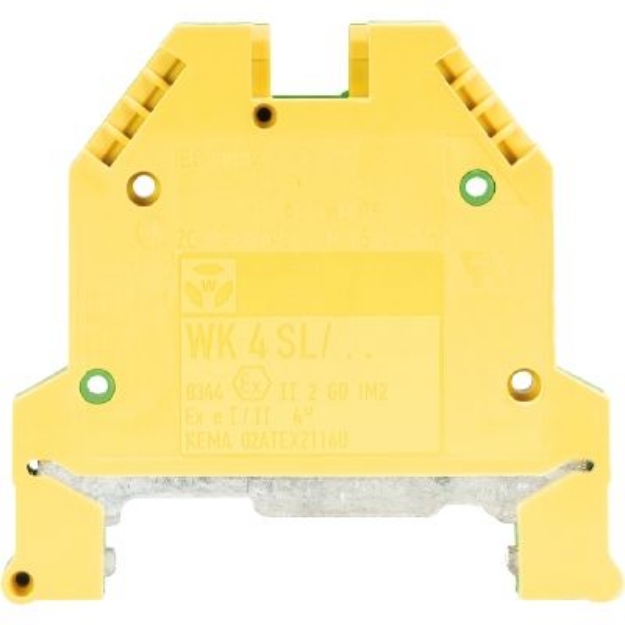

earth terminal WK 4 SL Green/Yellow

Ground DIN rail terminal block with screw connection for mounting on TS 35

$6.80

(Each excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: WIE-57.504.9055.0 Manufacturer part number: 57.504.9055.0 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Ground DIN rail terminal block with screw connection for mounting on TS 35, nominal cross section 4 mm², width 6 mm, color green/yellow

Specifications

nominal cross section 4 mm²
color green/yellow
number of levels 1
number of clamp positions per level 2
width/grid dimension 6 mm
insulating housing PA666
inflammability class of insulation material acc. with UL94 V0
explosion-tested version "Ex e" yes
mounting method TS35
terminal blocks for electrical installations yes
rated voltage 800 V
rated impulse voltage 8 kV
pollution degree 3
closing plate required no
type of insulation material thermoplastic
length 51 mm
connection type 1 screw connection
connection type 2 screw connection
minimum cross section solid 0.5 mm²
maximum cross section solid 6 mm²
minimum cross section fine stranded 0.5 mm²
maximum cross section fine stranded 4 mm²
wire strip length 9 mm

SKU
WIE-57.504.9055.0
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Conductor Size 4mm
Number of Poles 3
Clamp Type Screw
Colour Earth (Green / Yellow)
Number of Decks Single
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Ground DIN rail terminal block with screw connection for mounting on TS 35, nominal cross section 4 mm², width 6 mm, color green/yellow

Specifications

nominal cross section 4 mm²
color green/yellow
number of levels 1
number of clamp positions per level 2
width/grid dimension 6 mm
insulating housing PA666
inflammability class of insulation material acc. with UL94 V0
explosion-tested version "Ex e" yes
mounting method TS35
terminal blocks for electrical installations yes
rated voltage 800 V
rated impulse voltage 8 kV
pollution degree 3
closing plate required no
type of insulation material thermoplastic
length 51 mm
connection type 1 screw connection
connection type 2 screw connection
minimum cross section solid 0.5 mm²
maximum cross section solid 6 mm²
minimum cross section fine stranded 0.5 mm²
maximum cross section fine stranded 4 mm²
wire strip length 9 mm

SKU
WIE-57.504.9055.0
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Conductor Size 4mm
Number of Poles 3
Clamp Type Screw
Colour Earth (Green / Yellow)
Number of Decks Single
