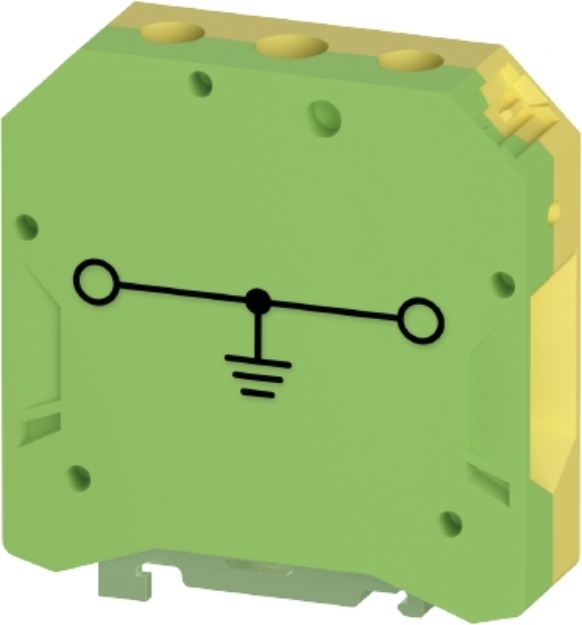

Screw Terminal - 50mm -WTN - Earth

Earth Terminal WTN 50 PE

The Wieland Earth Terminal WTN 50 PE is a green/yellow, single-level DIN-rail terminal with screw connection for conductors from 16 mm² to 50 mm². It features a 50 mm² nominal cross section, a rated voltage of 1000 V, and UL94 V0 insulation.

Technical Details

• Nominal cross section: 50 mm²
• Color: green/yellow
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 20 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: screw connection
• Halogen-free
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Closing plate required: no
• Length: 70.5 mm
• Width: 20 mm
• Height: 76.5 mm
• Minimum cross section solid: 16 mm²
• Maximum cross section solid: 50 mm²
• Minimum cross section fine stranded: 16 mm²
• Maximum cross section fine stranded: 50 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 16 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 50 mm²
• Wire strip length: 26 mm
• Torque conductor mounting: 7.9 Nm
• Cross section UL: 6-2sol AWG,1/0str AWG
• Voltage UL: 600 V
• Cross section CSA: 6-2sol AWG,1/0str AWG
• Voltage CSA: 600 V

SKU WIE-5D.S50.9055.0
MPN 5D.S50.9055.0
EAN 4049088725630
