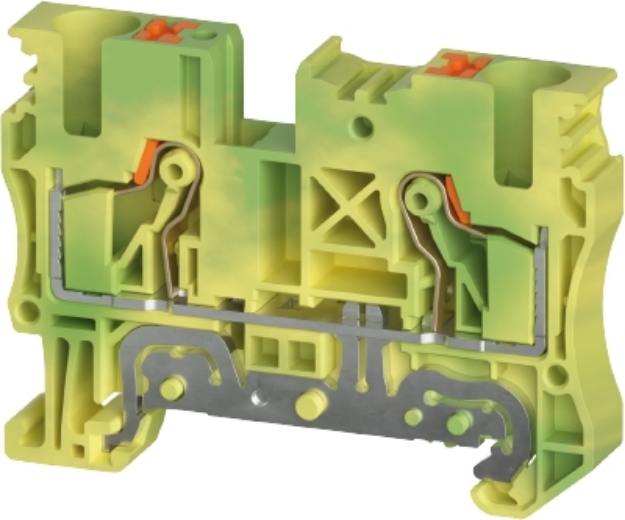

Push Terminal - 6mm - WTPN - Earth

Earth Terminal WTPN 6 PE

The Wieland WTPN 6 PE earth terminal is designed for safe electrical installations with push-in and plug-in connections. It supports conductors from 0.5 mm² to 10 mm², mounts on DIN rails, and features a green/yellow thermoplastic housing with a rated voltage of 1000 V.

Technical Details

• Nominal cross section: 6 mm²
• Color: green/yellow
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 8 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Connection type: push-In connection
• Halogen free: yes
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 57.8 mm
• Width: 8 mm
• Height: 43.5 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.5 mm²
• Maximum cross section solid: 10 mm²
• Minimum cross section fine stranded: 0.5 mm²
• Maximum cross section fine stranded: 6 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 6 mm²
• Wire strip length: 12 mm
• Cross section UL: 20-8 AWG
• Voltage UL: 600 V
• Cross section CSA: 20-8 AWG
• Voltage CSA: 600 V

SKU WIE-5D.206.9055.0
MPN 5D.206.9055.0
EAN 4049088719189
