Screw Terminal - 10mm -WTN - Grey

Screw Terminal - 10mm -WTN - Grey

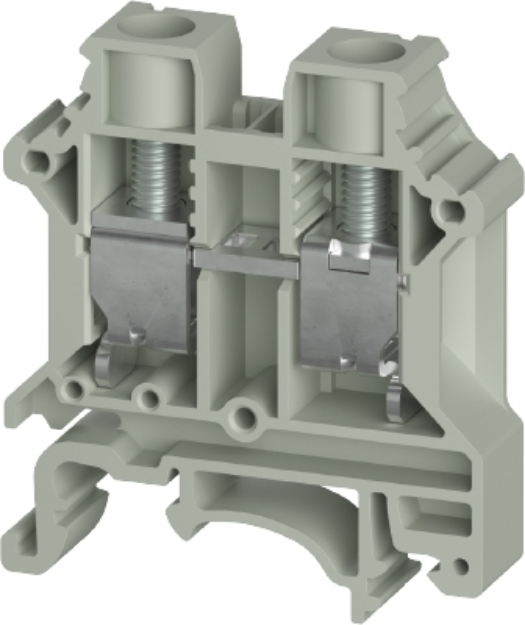

Feed-through terminal WTN 10 is a 2-pole, single-level, grey, screw-connection solution for reliable electrical termination and distribution. Key characteristics include a nominal conductor size of 10 mm², a rated voltage of 1000 V, a rated current of 57 A, din rail (top hat rail) mounting, and PA insulation. Additional design features include a 10 mm grid width, UL94 V0 flammability performance, and halogen-free construction.

Technical Details

• Net weight single part: 16.81 g
• Nominal cross section: 10 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 10 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Halogen free: yes
• Rated current: 57 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 43.2 mm
• Width: 10 mm
• Height: 50.2 mm
• Connection type: screw connection
• Connection type 1: screw connection
• Connection type 2: screw connection
• Minimum cross section solid: 0.5 mm²
• Maximum cross section solid: 16 mm²
• Minimum cross section fine stranded: 0.5 mm²
• Maximum cross section fine stranded: 10 mm²
• Minumum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 10 mm²
• Wire strip length: 12 mm
• Torque conductor mounting: 1.2 Nm
• Cross section UL: 20-6 AWG
• Voltage UL: 600 V
• Current factory wiring: 60 A
• Current field wiring: 60 A
• Cross section CSA: 20-6 AWG
• Voltage CSA: 600 V
• Current CSA: 60 A

SKU WIE-5D.S10.0055.0
MPN 5D.S10.0055.0
EAN 4049088725357
