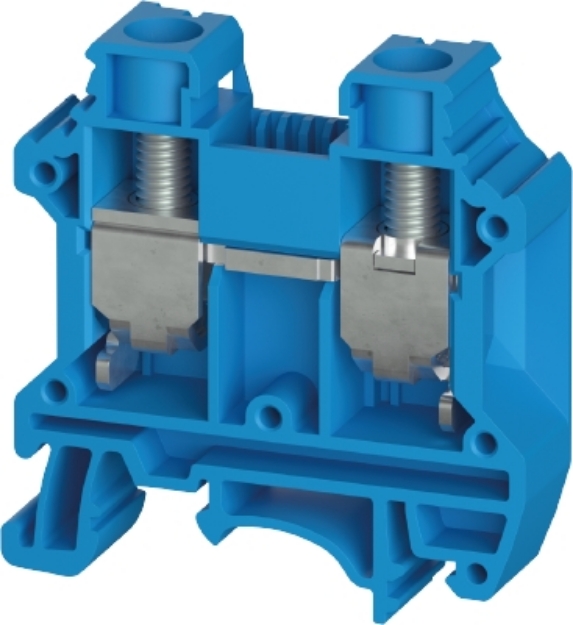

Feed-through terminal WTN 16 BL is a 2-pole, single-level, blue, screw-connection solution for reliable electrical termination and distribution. Key characteristics include a nominal conductor size of 16 mm², a rated voltage of 1000 V, a rated current of 76 A, din rail (top hat rail) mounting, and PA insulation. Additional design features include a 12 mm grid width, UL94 V0 flammability performance, and halogen-free construction.

Technical Details

• Net weight single part: 23.64 g
• Nominal cross section: 16 mm²
• Color: blue
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 12 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Halogen free: yes
• Rated current: 76 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 49.6 mm
• Width: 12 mm
• Height: 52.2 mm
• Connection type: screw connection
• Connection type 1: screw connection
• Connection type 2: screw connection
• Minimum cross section solid: 1.5 mm²
• Maximum cross section solid: 25 mm²
• Minimum cross section fine stranded: 1.5 mm²
• Maximum cross section fine stranded: 16 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 1.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 16 mm²
• Wire strip length: 14 mm
• Torque conductor mounting: 2 Nm
• Cross section UL: 14-3 AWG
• Voltage UL: 600 V
• Current factory wiring: 100 A
• Current field wiring: 100 A
• Cross section CSA: 14-3 AWG
• Voltage CSA: 600 V
• Current CSA: 100 A

SKU WIE-5D.S16.0055.6
MPN 5D.S16.0055.6
EAN 4049088725456
