Push Terminal - 4mm -WTPN - Grey

Feed-Through Terminal WTPN 4 D1/2

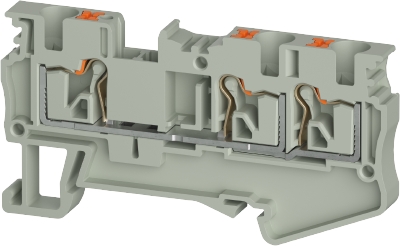

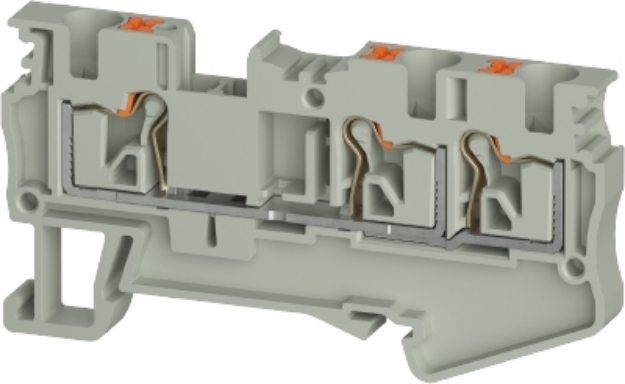

A grey Wieland WTPN 4 D1/2 feed-through terminal with a 4 mm² nominal cross section, push-in connection, and DIN rail mounting. It supports rated currents up to 32 A, rated voltages up to 800 V, and conductor cross sections from 0.2 mm² to 6 mm² depending on conductor type.

Technical Details

• Nominal cross section: 4 mm²
• Color: Grey
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 6.1 mm
• Insulating housing: PA
• Inflammability class of insulation material according to UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: Push-in connection
• Halogen free: Yes
• Rated current: 32 A
• Rated voltage: 800 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: Yes
• Type of insulation material: Thermoplastic
• Length: 67.3 mm
• Width: 6.1 mm
• Height: 36.5 mm
• Connection type 1: Plug-in connection
• Minimum cross section solid: 0.2 mm²
• Maximum cross section solid: 6 mm²
• Minimum cross section fine stranded: 0.2 mm²
• Maximum cross section fine stranded: 4 mm²
• Minimum conductor cross section (flexible, stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flexible, stranded) with cable end sleeve: 4 mm²
• Wire strip length: 12 mm
• Cross section UL: 24-10 AWG
• Voltage UL: 600 V
• Current factory wiring: 30 A
• Current field wiring: 30 A
• Cross section CSA: 24-10 AWG
• Voltage CSA: 600 V
• Current CSA: 30 A

SKU WIE-5D.204.5055.0
MPN 5D.204.5055.0
EAN 4049088706691
