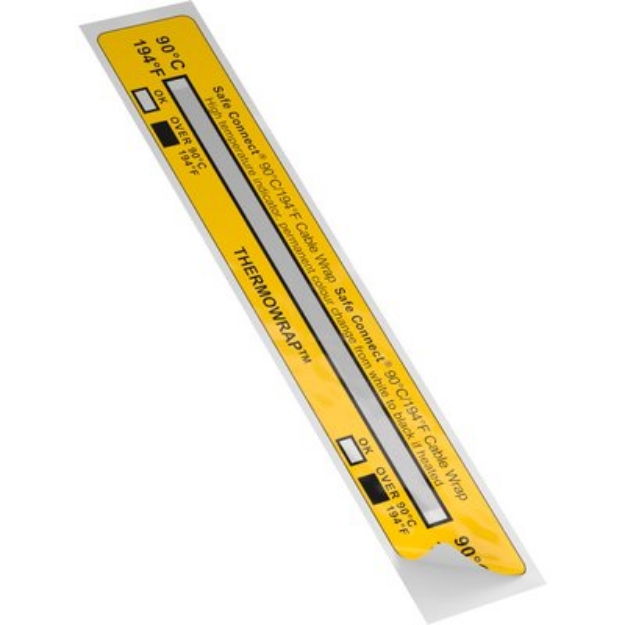

Thermo Wrap 90°C -20

FLEXIMARK® THERMO WRAP

Temperature indicator for monitoring power cables, with memory effect, available for different activation temperatures (+70 °C or + 90 °C).

The attached temperature indicators make visual inspection of electrical equipment possible. A colour change occurs if the temperature is exceeded.

Quickly identifying overheated electrical components makes rapid cause analysis possible. This allows appropriate countermeasures to be initiated to avoid plant downtimes.

24/7 monitoring and the memory effect make it possible to continuously record temperature exceedance, and can act as an early warning of overheating.

• Safe, fast and uncomplicated installation.
• Suitable for cable outer diameters of up to 33 mm.

Application range

• For indicating that temperatures have been exceeded.
• Irreversible colour change at temperatures from +70°C or +90°C (depending on article).
• For use with power cables.
• Can be used in dry interiors.

Technical Data

• Classification ETIM 5 EC003592
• Colour yellow
• Material polyester
• Covering film polyester
• Adhesive acrylic
• Color change material, Non-toxic, white crystalline solid on a black absorbent backing, adhered with acrylic adhesive
• Activation temperature 70°C and 90°C
• Tolerance +/- 1°C
• Response time 5 to 20 seconds
• Store at room temperature & humidity

Limitations: These labels are designed to use on electrical equipment and as such electrical safety must be assessed by a competent electrician prior to their application. FLEXIMARK® THERMO WRAP is not suitable for unprotected use outdoors or in direct sunlight. The wraps are vulnerable to degradation and non-performance from prolonged exposure to ultra-violet (UV) light. FLEXIMARK® THERMO WRAP will not prevent electrical faults or fires but will aid in monitoring abnormal temperatures and will give visual indication of abnormal wire insulation temperature above 70°C/90 °C for whatever underlying cause.

SKU LAPP-83881127
MPN 83881127
EAN 4064727996684
