Grey Screened PUR 18G1

Benefits

• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Wide temperature range for applications in harsh climatic environments
• Additional robustness thanks to inner sheath
• Copper braiding screens the cable against
  electromagnetic interference

Application range

• Industrial machinery and machine tools
• Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
• Construction machinery
• Agricultural equipment
• For indoor and outdoor use

Product features

• Resistant to oil and drilling fluids according to IEC 61892-4, Appendix D
• Abrasion and notch-resistant
• Halogen-free and flame-retardant
  (IEC 60332-1-2)
• EMC-compliant
• Flexible at low temperatures

Norm references / Approvals

• VDE reg. no. 6582
• Suitable for use in fresh water down to 10 m depth at max. water temperature of +40 °C according to EN 50565-2

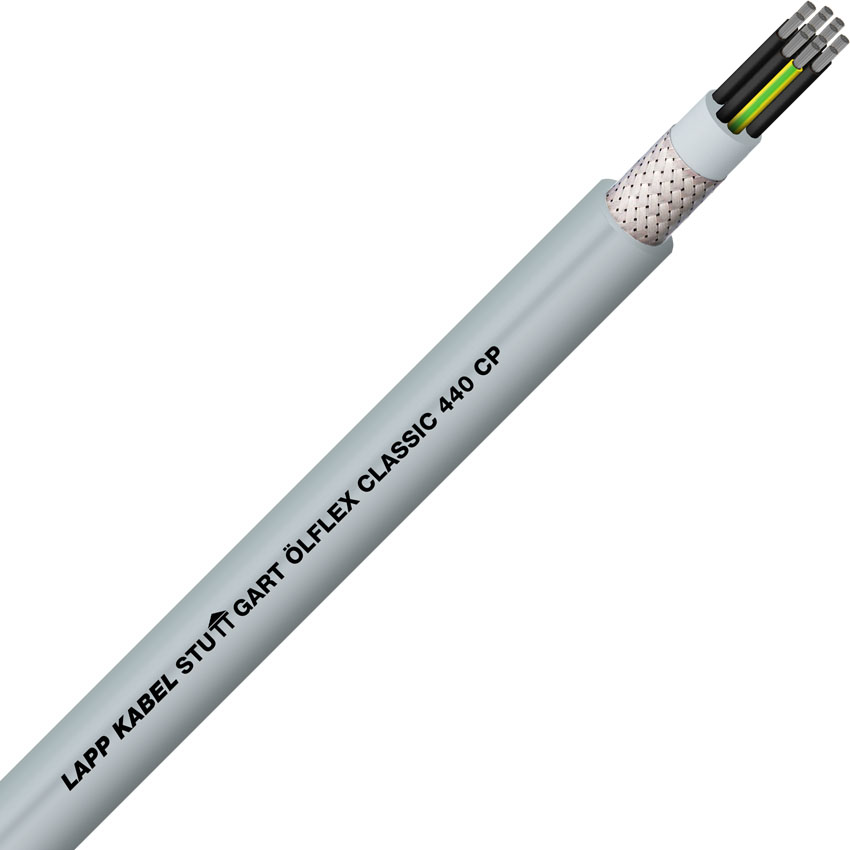

Product Make-up

• Fine-wire, tinned-copper conductor
• Core insulation: TPE
• Cores twisted in layers
• Inner sheath made of TPE
• Tinned-copper braiding
• Special polyurethane outer sheath (PUR)
• Sheath colour: Grey (similar RAL 7001)

Nominal voltage

• U0/U: 300/500 V

Temperature range

• Occasional flexing: -40°C to +90°C
• Fixed installation: -50°C to +90°C
