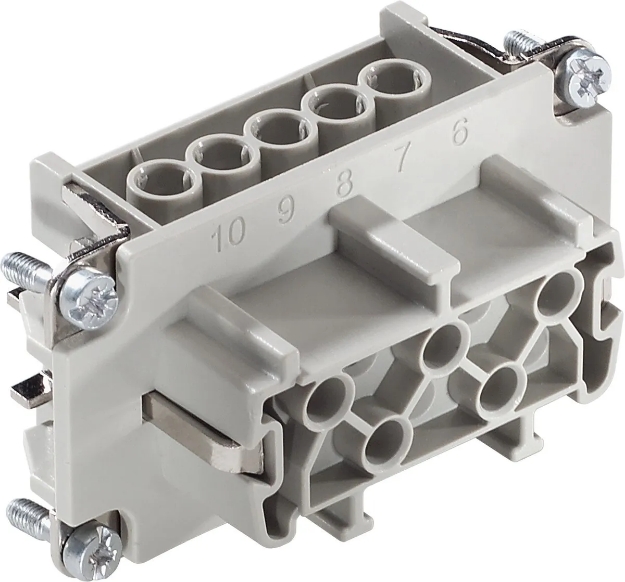

H-BE 10 Insert (Female) Screw

The proven standard inserts for easy assembly

The insert with screw termination can be used for a broad range of applications, for example in lighting and sound systems.

• Proven screw for easy installation
• Screw, crimp, cage clamp and Push-In version - freely combinable
• Railway applications

Benefits

• Standard inserts with screw, crimp cage clamp and Push-In termination
• The EPIC® H-BE series is suitable for applications that require a reliable connection when working with high voltages and currents
• Railway applications
  - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
• UL tested for application in control cabinets according UL 508 / UL 2237

Application range

• Mechanical engineering
• Plastics industry
• Light & sound technology
• Railway applications / vehicle construction

Number of contacts

• 10 + PE

Rated voltage (V)

• IEC: 500 VUL: 600 VCSA: 600 V

Rated current (A)

• IEC: 16 A
  UL: 16 A
  CSA: 16 A
