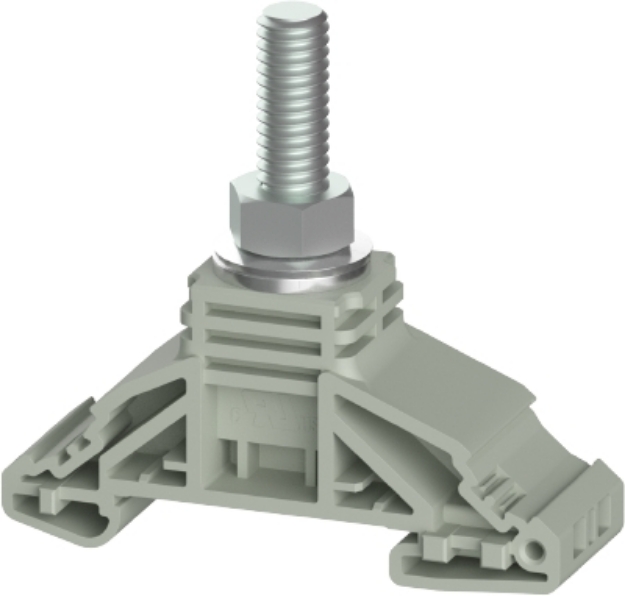

High Current Stud Terminal WRTN 50 M8

High Current Terminal WRTN 50 M8

Technical Details

• Nominal cross section: 50 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 3
• Width/grid dimension: 21 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: bolt connection
• Halogen free: yes
• Rated current: 150 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Closing plate required: no
• Type of insulation material: thermoplastic
• Length: 67 mm
• Width: 21 mm
• Height: 64 mm
• Connection type 1: screw connection
• Minimum cross section solid: 2.5 mm²
• Maximum cross section solid: 50 mm²
• Minimum cross section fine stranded: 2.5 mm²
• Maximum cross section fine stranded: 50 mm²
• Torque conductor mounting: 10 Nm
• Cross section UL: 14-1/0 AWG
• Voltage UL: 1000 V
• Current factory wiring: 150 A
• Current field wiring: 150 A
• Cross section CSA: 14-1/0 AWG
• Voltage CSA: 1000 V
• Current CSA: 150 A

SKU WIE-5D.S50.1755.0
MPN 5D.S50.1755.0
EAN 4049088725623
