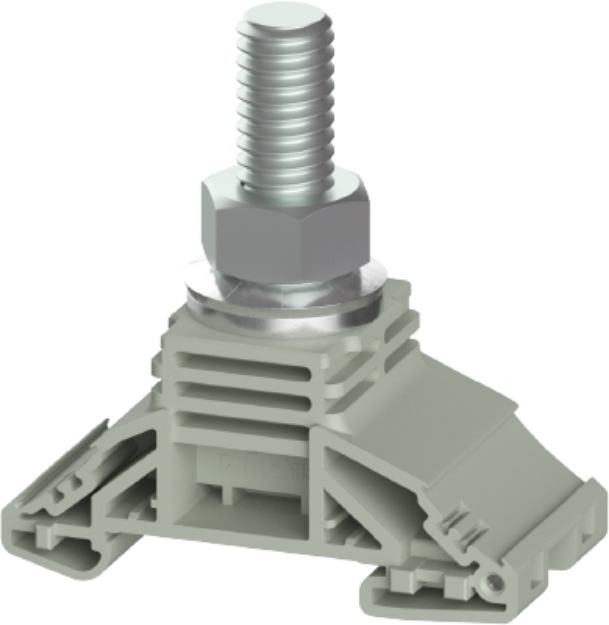

High Current Stud Terminal WRTN 120 M12

High Current Stud Terminal WRTN 120 M12

High current terminal WRTN 120 M12 is a single-level, grey solution for reliable electrical termination and distribution. Key characteristics include a nominal conductor size of 120 mm², a rated voltage of 1000 V, a rated current of 269 A, din rail (top hat rail) mounting, and PA insulation. Additional design features include a 32 mm grid width, UL94 V0 flammability performance, and halogen-free construction.

Technical Details

• Net weight single part: 101 g
• Nominal cross section: 120 mm²
• Color: grey
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 32 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Halogen free: yes
• Rated current: 269 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Closing plate required: no
• Type of insulation material: thermoplastic
• Length: 67 mm
• Width: 32 mm
• Height: 71 mm
• Connection type: bolt connection
• Connection type 1: screw connection
• Minimum cross section solid: 6 mm²
• Maximum cross section solid: 120 mm²
• Minimum cross section fine stranded: 6 mm²
• Maximum cross section fine stranded: 120 mm²
• Torque conductor mounting: 22 Nm
• Cross section UL: 10 AWG - 250 kcmil
• Voltage UL: 1000 V
• Current factory wiring: 255 A
• Current field wiring: 255 A
• Cross section CSA: 10 AWG - 250 kcmil
• Voltage CSA: 1000 V
• Current CSA: 255 A

SKU WIE-5D.S96.1855.0
MPN 5D.S96.1855.0
EAN 4049088725753
