Intrinsically Safe Data 2x2x0.75

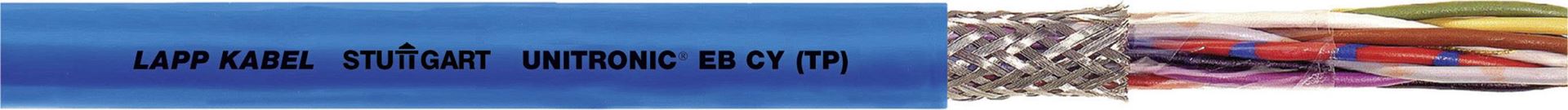

UNITRONIC® EB CY (TP) Screened with Twisted Pairs, for Intrinsically Safe Circuits, 2x2x0.75

Free shipping on Web orders over $100

$13.30 (Per/m excl GST)

Global Stock

SKU: LAPP-0012620 Manufacturer part number: 0012620

Qty:

Overview
Contact Us
Downloads

Screened data transmission cable with twisted pairs and blue outer sheath.

UNITRONIC® EB CY (TP): Low-frequency PVC data cable, DIN 47100 coded, Twisted Pair, Screened, Blue jacket, Intrinsically safe circuits, EN 60079-14/ VDE 0165-1

Benefits

Overall braid minimises electrical
interference
Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)

Application range

Reliable data transmission in intrinsically safe circuits
In EMC-sensitive environments
(electromagnetic compatibility)

Product features

For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
Flame-retardant according IEC 60332-1-2

Norm references / Approvals

Based on VDE 0812

Product Make-up

Fine-wire strand made of bare copper wires
Core insulation made of PVC
TP structure
Tinned-copper braiding
Outer sheath made of PVC
Outer sheath colour: sky blue (RAL 5015)

Test voltage

2500 V

Temperature range

Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C

SKU

LAPP-0012620

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
