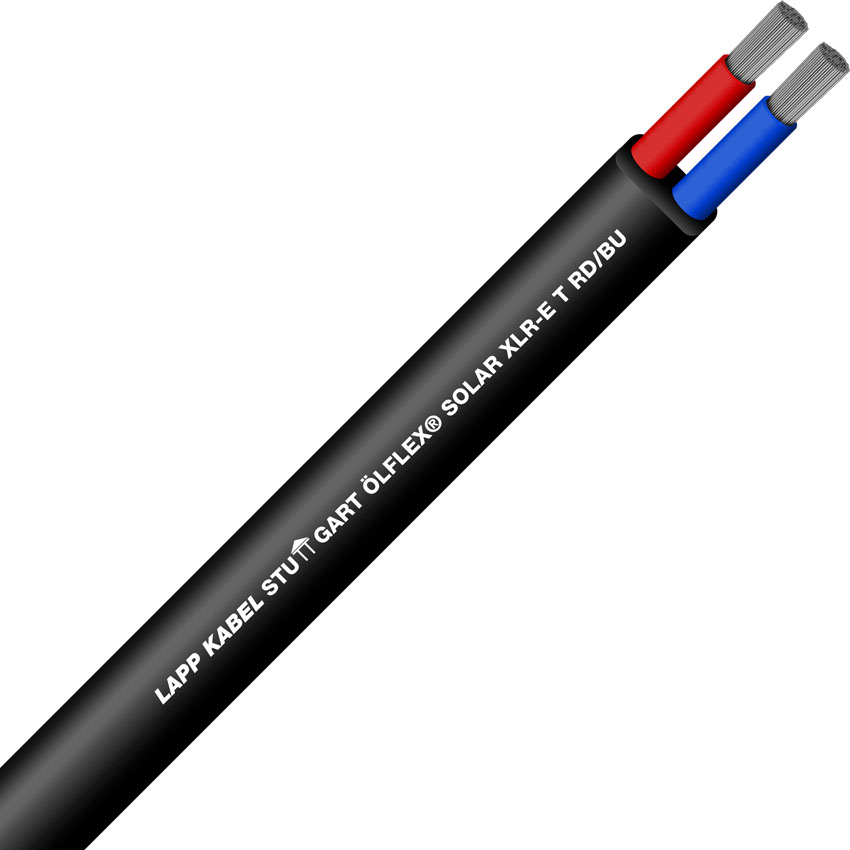

LAPP Solar Cable 2x4mm (500m Drum)

LAPP XLR-E Solar Cable is made and tested to the latest international standard EN 50618.

The new EN 50618 standard is a higher level and has replaces the older PV1-F standard which is now no longer in effect. The new LAPP XLR-E has an improved sheath to ensure long term this is the right cable for your application.

Standards
Independently certified by TUV to EN 50618
Design conforms to the new standard IEC 62930

Nominal voltage
DC U0/U : 1,5/1,5 kV
Max. permissible operating voltage:
DC 1,8 kV (Conductor-conductor, non earthed system)

Temperature range
-40°C to +120°C max. conductor temperature

Minimum bending radius
Fixed installation: 4 x outer diameter

Conductor stranding
Fine wire according to VDE 0295,
class 5/IEC 60228 class 5

Test voltage
AC 6500 V

SKU
LAPP-1023712
