LiYCY 2x0.5

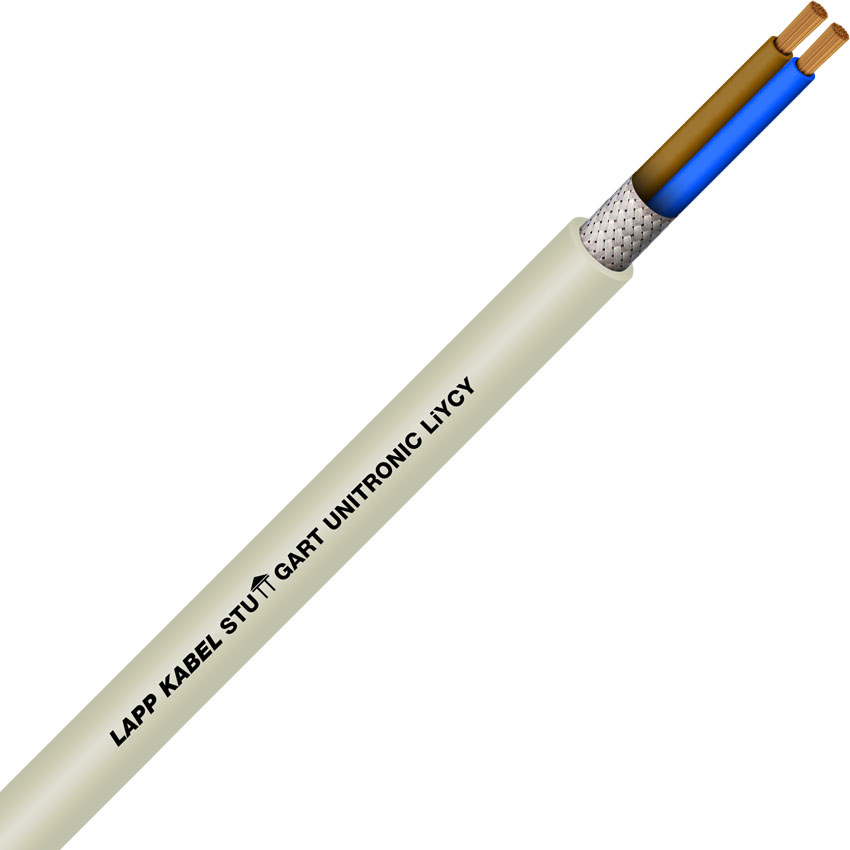

UNITRONIC® LiYCY, Screened Data Cable with small dimensions, 2x0.5

$5.19

(Per/m excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: LAPP-0034602 Manufacturer part number: 0034602 Manufacturer: UNITRONIC® Price breaks available:

Free shipping on Web orders over $100

Benefits

  • Overall braid minimises electrical
    interference
  • Multifunctional application possibilities

Application range

  • Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances.
  • Dry or damp rooms

Product features

  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Based on VDE 0812

Product Make-up

  • Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
  • Core insulation made of PVC
  • Tinned-copper braiding
  • Outer sheath made of PVC
    Outer sheath colour: pebble grey (RAL 7032)

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C

SKU
LAPP-0034602
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in NZ Only Show Stocked Items
Locally Stocked in Australia Only Show Stocked Items
Number of Conductors 2
Conductor Size 0.5mm
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Benefits

  • Overall braid minimises electrical
    interference
  • Multifunctional application possibilities

Application range

  • Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances.
  • Dry or damp rooms

Product features

  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Based on VDE 0812

Product Make-up

  • Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
  • Core insulation made of PVC
  • Tinned-copper braiding
  • Outer sheath made of PVC
    Outer sheath colour: pebble grey (RAL 7032)

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C

SKU
LAPP-0034602
Products specifications
Attribute name Attribute value
Locally Stocked in NZ Only Show Stocked Items
Locally Stocked in Australia Only Show Stocked Items
Number of Conductors 2
Conductor Size 0.5mm
