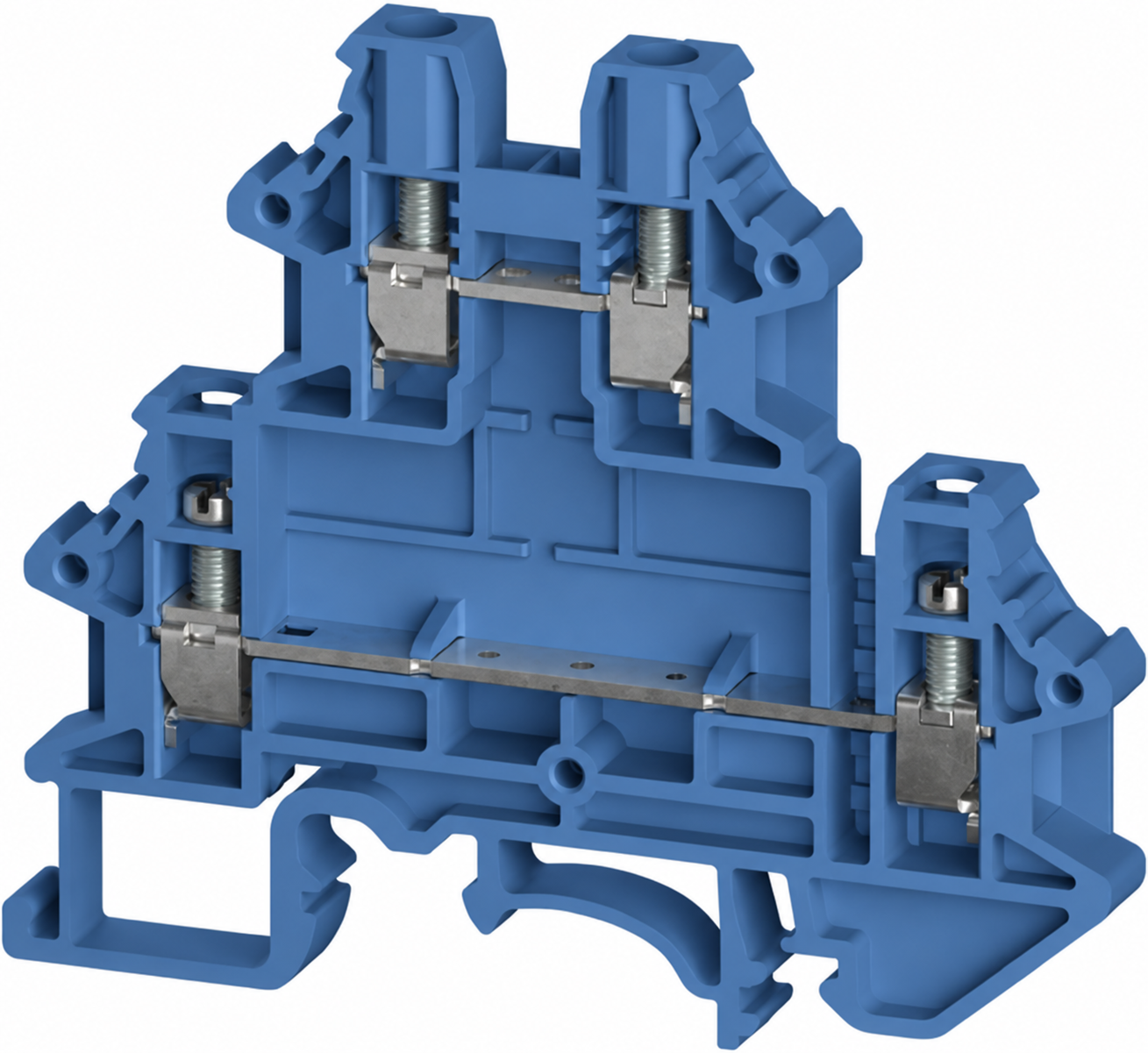

Screw Multi Tier Terminal - 4mm -WTN E Blue

Name: Screw Multi Tier Terminal - 4mm -WTN E Blue
SKU: WIE-5D.S04.7055.6
Price: 7.27 NZD
Availability: InStock

4 Pole, double deck terminal WTN 4 E Blue rated voltage 800V, rated current 32A, screw connection

$7.27 (Each excl GST)

(Each excl GST)

On Request

SKU: WIE-5D.S04.7055.6 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-5D.S04.7055.6 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Ask A Specialist

Duo Feed-through terminal with Screw connection for mounting on TH 35, nominal cross section: 4 mm², width: 6 mm, color: blue

Specifications

nominal cross section	4 mm²
color	blue
number of levels	2
number of clamp positions per level	2
width/grid dimension	6 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
explosion-tested version "Ex e"	no
mounting method	DIN rail (top hat rail)
terminal blocks for electrical installations	no
rated current	32 A
rated voltage	800 V
rated impulse voltage	8 kV
pollution degree	3
closing plate required	yes
type of insulation material	thermoplastic
length	71.5 mm
width	6.1 mm
height	62.2 mm

SKU

WIE-5D.S04.7055.6

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Conductor Size	4mm
Colour	Blue
Number of Decks	Double
Clamp Type	Screw
Number of Poles	4
Current Rating (A)	32
Voltage	800V

Your name *

Your email *

Enquiry *

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Duo Feed-through terminal with Screw connection for mounting on TH 35, nominal cross section: 4 mm², width: 6 mm, color: blue

Specifications

nominal cross section	4 mm²
color	blue
number of levels	2
number of clamp positions per level	2
width/grid dimension	6 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
explosion-tested version "Ex e"	no
mounting method	DIN rail (top hat rail)
terminal blocks for electrical installations	no
rated current	32 A
rated voltage	800 V
rated impulse voltage	8 kV
pollution degree	3
closing plate required	yes
type of insulation material	thermoplastic
length	71.5 mm
width	6.1 mm
height	62.2 mm

SKU

WIE-5D.S04.7055.6

Products specifications

Attribute name	Attribute value
Conductor Size	4mm
Colour	Blue
Number of Decks	Double
Clamp Type	Screw
Number of Poles	4
Current Rating (A)	32
Voltage	800V
