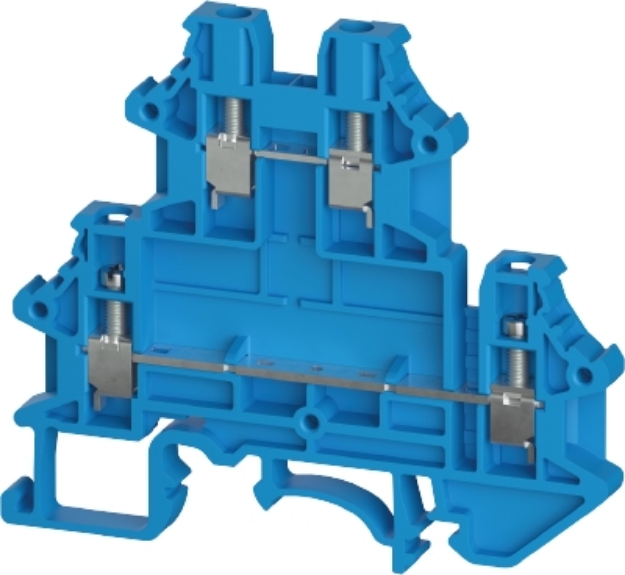

Screw Multi Tier Terminal - 2.5mm -WTN E

Name: Screw Multi Tier Terminal - 2.5mm -WTN E
SKU: WIE-5D.S03.7055.6
Price: 653.00 NZD
Availability: InStock

4 Pole, double deck terminal WTN 2.5 E BL rated voltage 800V, rated current 24A, screw connection

$653.00 (100 Pack excl GST)

(100 Pack excl GST)

On Request

SKU: WIE-5D.S03.7055.6 Manufacturer part number: 5D.S03.7055.6 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-5D.S03.7055.6 Manufacturer part number: 5D.S03.7055.6 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Multi-Tier Terminal Wtn 2.5 E Bl

This blue two-level multi-tier terminal features screw connections, a 2.5 mm² nominal cross section, and a rated voltage of 800 V. It mounts on DIN rail and supports reliable industrial wiring applications.

Technical Details

Nominal cross section: 2.5 mm²
Color: blue
Number of levels: 2
Number of clamp positions per level: 2
Width/grid dimension: 5.1 mm
Insulating housing: PA
Inflammability class of insulation material acc. with UL94: V0
Mounting method: DIN rail (top hat rail)
Connection type: screw connection
Halogen free: yes
Rated current: 24 A
Rated voltage: 800 V
Rated impulse voltage: 8 kV
Pollution degree: 3
Closing plate required: yes
Type of insulation material: thermoplastic
Length: 71.5 mm
Width: 5.1 mm
Height: 63 mm
Minimum cross section solid: 0.34 mm²
Maximum cross section solid: 4 mm²
Minimum cross section fine stranded: 0.34 mm²
Maximum cross section fine stranded: 2.5 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve: 2.5 mm²
Wire strip length: 10 mm
Torque conductor mounting: 0.4 Nm
Cross section UL: 22-12 AWG
Voltage UL: 600 V
Current factory wiring: 20 A
Current field wiring: 20 A
Cross section CSA: 22-12 AWG
Voltage CSA: 600 V
Current CSA: 20 A

SKU WIE-5D.S03.7055.6
MPN 5D.S03.7055.6
EAN 4049088724763

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Conductor Size	2.5mm
Number of Poles	4
Clamp Type	Screw
Colour	Blue
Number of Decks	Double
Current Rating (A)	24
Voltage	800V
