Push Multi Tier Terminal - 2.5mm - WTPN E Diode

Push Multi Tier Terminal - 2.5mm - WTPN E Diode

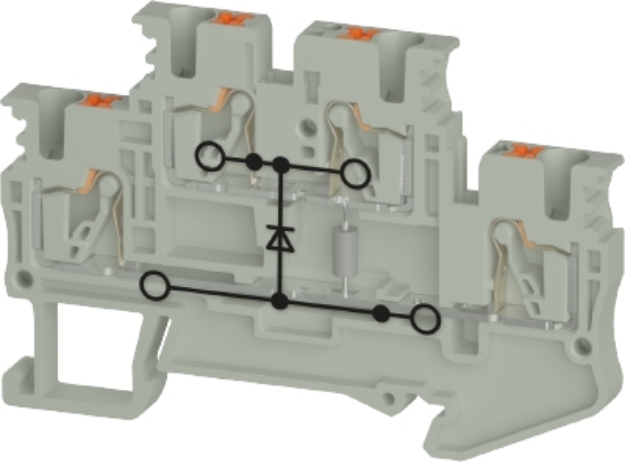

Multi-tier terminal WTPN 2.5 E D01 double deck terminal is a 4-pole, double-level, grey, push-connection solution for reliable electrical termination and distribution. Key characteristics include a nominal conductor size of 2.5 mm², a rated voltage of 500 V, a rated current of 0.5 A, din rail (top hat rail) mounting, and PA insulation. Additional design features include a 5.1 mm grid width, UL94 V0 flammability performance, and halogen-free construction.

Technical Details

• Net weight single part: 10.05 g
• Nominal cross section: 2.5 mm²
• Color: grey
• Number of levels: 2
• Number of clamp positions per level: 8
• Width/grid dimension: 5.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Halogen free: yes
• Rated current: 0.5 A
• Rated voltage: 500 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 69 mm
• Width: 5.1 mm
• Height: 47.5 mm
• Connection type: push-In connection//true
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.14 mm²
• Maximum cross section solid: 4 mm²
• Minimum cross section fine stranded: 0.14 mm²
• Maximum cross section fine stranded: 2.5 mm²
• Minumum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 2.5 mm²
• Wire strip length: 10 mm
• Cross section UL: 26-12 AWG
• Voltage UL: 300 V
• Current factory wiring: 0.5 A
• Current field wiring: 0.5 A
• Cross section CSA: 26-12 AWG
• Voltage CSA: 300 V
• Current CSA: 0.5 A

SKU WIE-5D.203.8655.0
MPN 5D.203.8655.0
EAN 4049088718885
