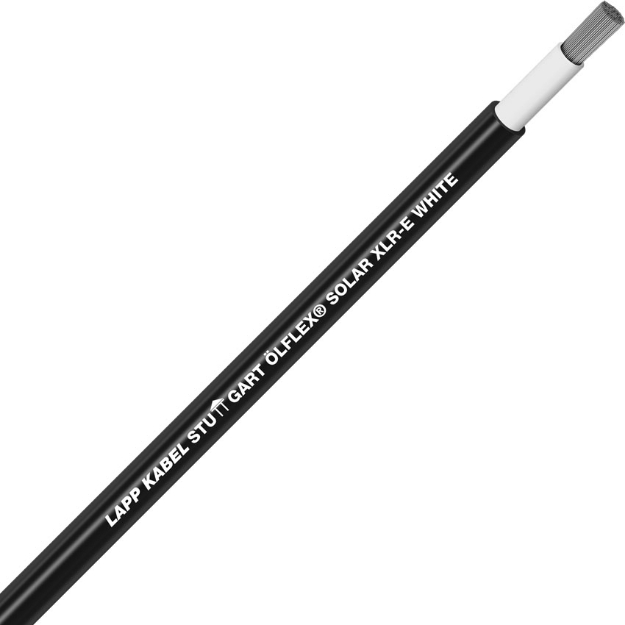

LAPP Solar Cable 1x4mm EN 50618

ÖLFLEX® Solar XLR-E Cross-linked solar cable - type H1Z2Z2-K certified according to EN 50618

EN 50618 is a new a higher level standard that supercedes the older PV1-F standard which is no longer in effect. The new LAPP XLR-E Solar Cable has improved sheath technology to ensure this is the right cable for your application long term.

Approvals

• Independently certified by TUV to EN 50618
• Design conforms to the new standard IEC 62930

Benefits

• Robust against mechanical impacts
• For outdoor applications
• Extruded colour stripe serves as reverse polarity protection during installation.
• Exact quantity control during installation by meter marking on the cable sheath
• Reduction of flame propagation and of toxic combustion gases in the event of fire

Application Range

• For use in photovoltaic-systems with rated voltage 1500 V DC
• For the cabling between the Solar modules and as extension cable between the module strings and the DC/AC inverter
• Gable and flat roof photovoltaic systems
• Photovoltaic plants and Solar parks
• Not suitable for direct burial, Installation according to IEC 60364-5-52, respectively HD 60364-5-52

Product Features

• Halogen-free and flame-retardant
• Weather/UV-resistant acc. to EN 50618, appendix E
• Ozone-resistant according to EN 50396
• XLR-E = X-Linked Radiated-EN Standard
• Proven electron beam cross-linked quality

Nominal voltage

• DC U0/U : 1,5/1,5 kV
• Max. permissible operating voltage:
  DC 1,8 kV (Conductor-conductor, non earthed system)

Temperature range
-40°C to +120°C max. conductor temperature

Minimum bending radius
Fixed installation: 4 x outer diameter

Conductor stranding
Fine wire according to VDE 0295, class 5/IEC 60228 class 5

Test voltage
AC 6500 V
