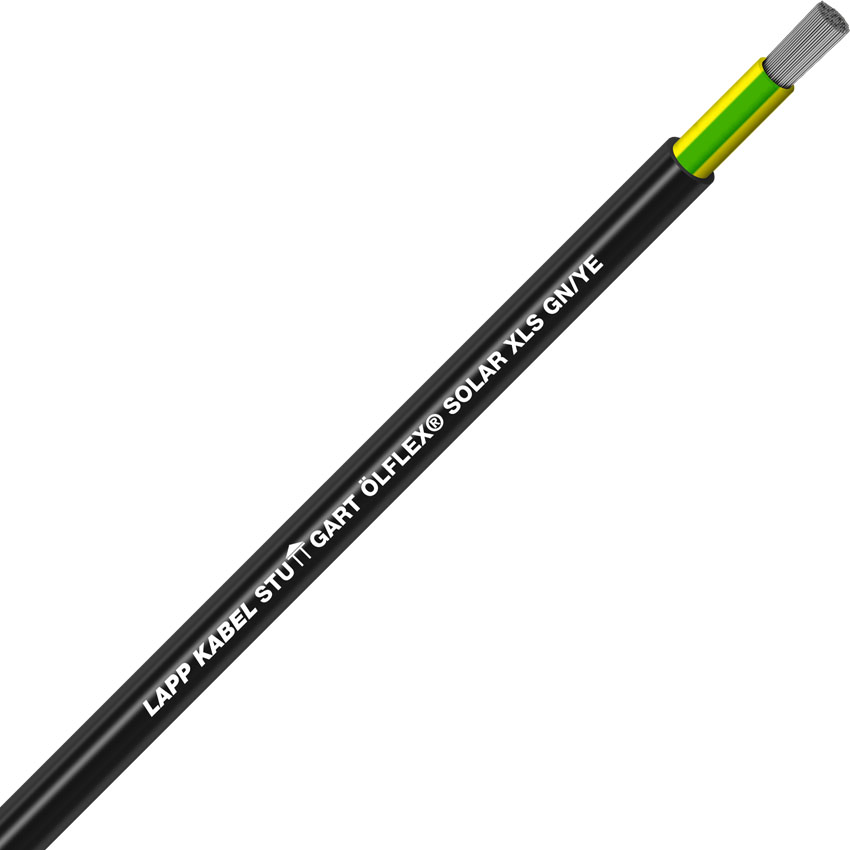

LAPP Solar Earth Cable 1x4mm

The only truly UV Resistant Earth Cable on the market.

This Solar Earth Cable is a variation on LAPP's standard Solar Cable range. LAPP use a traditional fine stranded earth cable and then extrude a special black UV resistant sheath over top.

Nominal voltage

• DC U₀/U : 900/1500 V
• Max. permissible operating voltage:
• DC 1,8 kV (Conductor-conductor, non earthed system)

Temperature range
-40°C to +120°C max. conductor temperature based on EN 60216-1

Minimum bending radius
Fixed installation: 4 x outer diameter

Conductor stranding
Fine wire according to VDE 0295, class 5/IEC 60228 class 5

Test voltage
AC 6500 V
