PE Li2YCY (TP) 2x2x0.22

Name: PE Li2YCY (TP) 2x2x0.22
SKU: LAPP-0031320
Price: 6.75 NZD
Availability: InStock

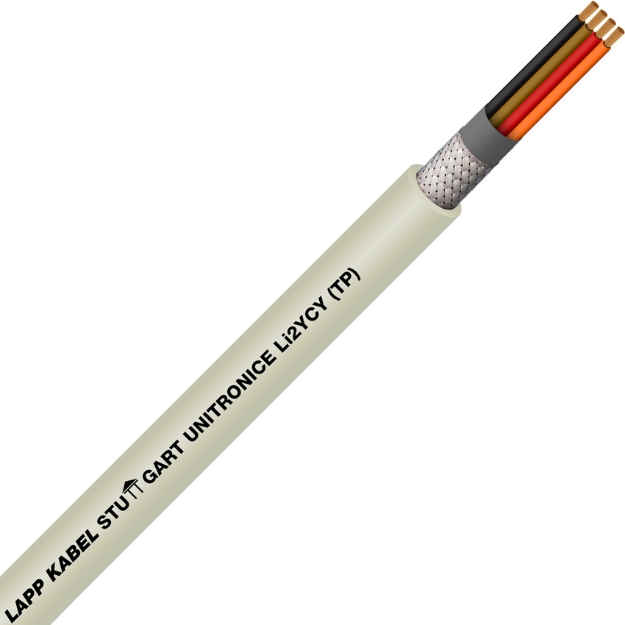

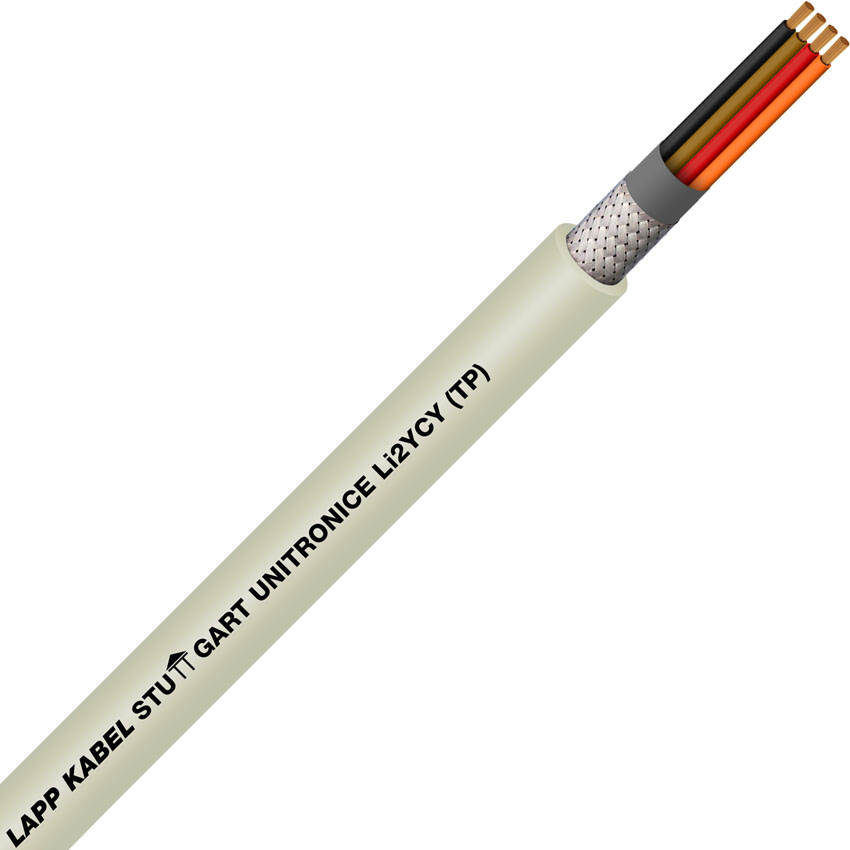

UNITRONIC® Li2YCY (TP), Screened Data Cable, PE core insulation 2x2x0.22

$6.75 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-0031320 Manufacturer part number: 0031320 Price breaks available:

Select or Type Quantity

SKU: LAPP-0031320 Manufacturer part number: 0031320 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Benefits

Overall braid minimises electrical
interference
Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)

Application range

Particularly suitable for wiring data systems with transmission rates up to 10 Megabits per second, and is qualified for the RS422 and RS485 interfaces.
For fixed and limited flexible installation
Can be used in dry or damp rooms
Signal-, control- and measuring cable,for transmission of low, sensitive signals and high bit rates
UNITRONIC®
Li2YCYv (TP) with its reinforced, nominal/ minimum average wall thickness of at least 1.8 mm of the black outer sheath (Yv) is designed for indoor and outdoor use as well as for applications where a reinforced outer sheath may turn out to be advantageous

Product features

Flame-retardant according IEC 60332-1-2

Norm references / Approvals

Based on VDE 0812

Product Make-up

7-wire bare stranded copper conductor
Core insulation made of polyethylene (PE)
TP structure
Tinned-copper braiding
Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)

Temperature range

Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C

SKU

LAPP-0031320

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
