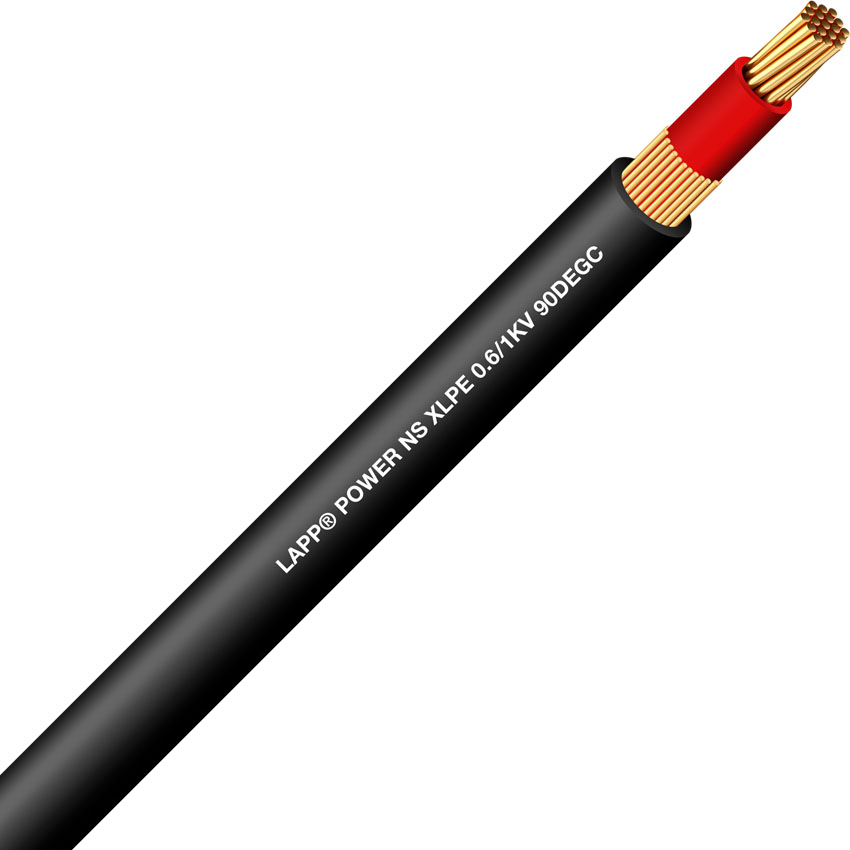

Power Neutral Screen XLPE 1x16

The POWER NS XLPE 0.6/1kV cable is a high-quality underground power cable designed for reliable performance in low-voltage electrical distribution applications. Manufactured in accordance with AS/NZS 4961 standards, it features a Class 2 stranded bare annealed copper conductor that ensures excellent electrical conductivity. The cable is insulated with XLPE (X-90), allowing it to operate safely at temperatures up to 90°C, making it suitable for demanding environments where thermal stability and durability are essential.

For enhanced protection and longevity, the cable is equipped with a robust PVC (V-90) outer sheath that provides resistance against mechanical stress and environmental factors. A neutral screen of plain annealed copper wire adds an extra layer of electrical safety and performance. Available in multiple core configurations, the POWER NS XLPE cable offers flexibility for a wide range of installation requirements, making it a dependable choice for underground power distribution systems.

Benefits

• Suitable for underground electric cable applications with a rated voltage of 0.6/1kV.
• XLPE insulation (X-90) supports a maximum operating temperature of 90°C for dependable thermal performance.
• PVC outer sheath (V-90) provides durable external protection.
• Bare annealed copper Class 2 conductor supports reliable electrical conductivity.
• Neutral screen uses plain annealed copper wire for added screening performance.
• Available in 1-core, 3-core, and 4-core configurations to suit different installation requirements.
• Black sheath with white marking supports clear product identification in the field.

Technical Details

• Product: POWER NS 4961 0.6/1kV
• Reference standard: AS/NZS 4961
• Conductor: Bare annealed copper, Class 2, according to AS/NZS 1125
• Insulation: XLPE compound (X-90)
• Core colours: 1-core Red; 3-core Red, White, Blue; 4-core Red, White, Blue, Black
• Laying up: Layers of optimum pitch with PP rope, polyester tape, and non-hygroscopic fillers
• Neutral screen: Plain annealed copper wire wrapped by mylar tape
• Neutral screen coverage: Single core 80% minimum; multicore 60% minimum
• Outer sheath: PVC compound (V-90)
• Sheath colour: Black
• Rated voltage: 0.6/1kV
• Test voltage: AC 3500V for 5 minutes
• Minimum bending radius: 12D
• Maximum operating temperature: 90°C

SKU LAPP-810009002
MPN 810009002
