Jumper Bar - 10 Pole - 6mm - WTN

Name: Jumper Bar - 10 Pole - 6mm - WTN
SKU: WIE-0D.S04.4027.5
Price: 4.19 NZD
Availability: InStock

10 Pole, jumper bar IVB WTN 4-10, 6.1mm spacing, insulated, red

$4.19 (Each excl GST)

(Each excl GST)

In Stock

SKU: WIE-0D.S04.4027.5 Manufacturer part number: 0D.S04.4027.5 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-0D.S04.4027.5 Manufacturer part number: 0D.S04.4027.5 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Jumper Bar IVB WTN 4-10

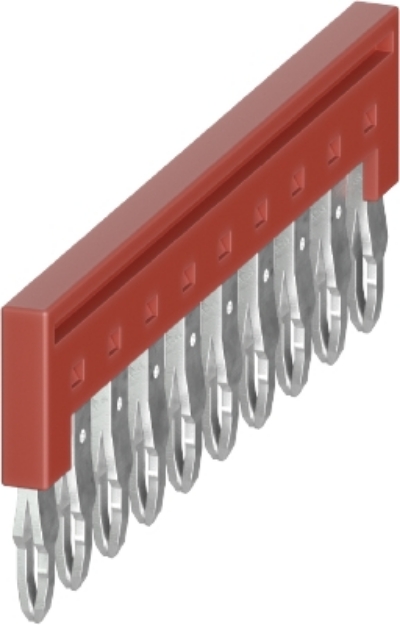

The IVB WTN 4-10 insulated red jumper bar features 10 bridged clamps, 6.1 mm modular spacing and pluggable mounting. Its halogen-free insulation is rated UL94 V0.

Technical Details

Color: red
Inflammability class of insulation material acc. with UL94: V0
Width/grid dimension: 59 mm
Length: 2.9 mm
Modular spacing: 6.1 mm
Number of bridged clamps: 10
Mounting method: pluggable
Insulated: yes
Model: cross connector
Height: 19.7 mm
Halogen free: yes

SKU WIE-0D.S04.4027.5
MPN 0D.S04.4027.5
EAN 4049088723131
