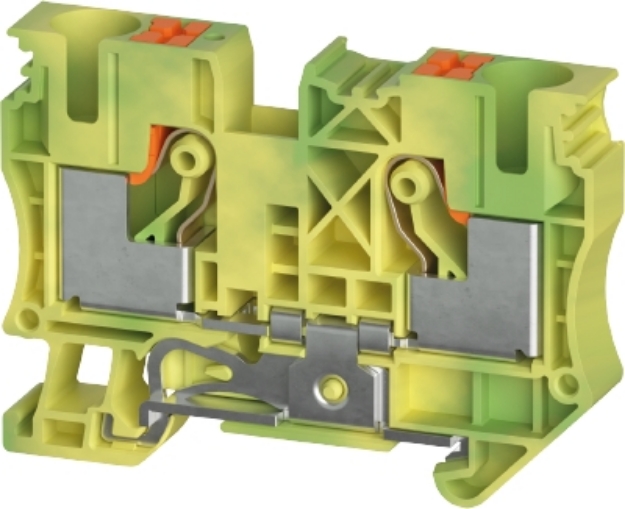

Push Terminal - 10mm - WTPN - Earth

Name: Push Terminal - 10mm - WTPN - Earth
SKU: WIE-5D.210.9055.0
Price: 12.30 NZD
Availability: InStock

2 Pole, earth terminal WTPN 10 PE rated voltage 1000V, 10mm, push-In connection

$12.30 (Each excl GST)

(Each excl GST)

In Stock

SKU: WIE-5D.210.9055.0 Manufacturer part number: 5D.210.9055.0 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-5D.210.9055.0 Manufacturer part number: 5D.210.9055.0 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Earth Terminal WTPN 10 PE

WTPN 10 PE green/yellow earth terminal with a 10 mm² nominal cross section, push-in connection and three clamp positions. It supports DIN rail mounting and a rated voltage of 1000 V.

Technical Details

Nominal cross section: 10 mm²
Color: green/yellow
Number of levels: 1
Number of clamp positions per level: 3
Width/grid dimension: 10 mm
Insulating housing: PA
Inflammability class of insulation material acc. with UL94: V0
Mounting method: DIN rail (top hat rail)
Terminal blocks for electrical installations: yes
Connection type: push-In connection//true
Halogen free: yes
Rated voltage: 1000 V
Rated impulse voltage: 8 kV
Pollution degree: 3
Closing plate required: yes
Length: 69 mm
Width: 10 mm
Height: 50.1 mm
Connection type 1: plug-in connection
Minimum cross section solid: 0.5 mm²
Maximum cross section solid: 16 mm²
Minimum cross section fine stranded: 0.5 mm²
Maximum cross section fine stranded: 10 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.5 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve: 10 mm²
Wire strip length: 18 mm
Cross section UL: 20-6 AWG
Voltage UL: 600 V
Cross section CSA: 20-6 AWG
Voltage CSA: 600 V

SKU WIE-5D.210.9055.0
MPN 5D.210.9055.0
EAN 4049088719257
