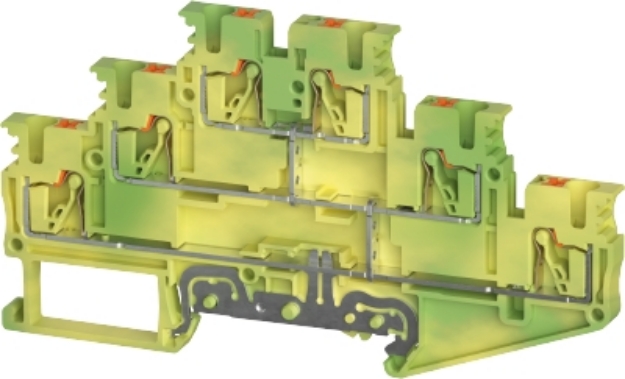

Push Terminal - 2.5mm - WTPN - Earth

6 Pole, earth terminal WTPN 2.5 E3 PE, 3 Levels, rated voltage 500V, 2.5mm, push-In connection

$9.42

(Each excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: WIE-5D.203.9755.0 Manufacturer part number: 5D.203.9755.0 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Earth Terminal WTPN 2.5 E3 PE

The WTPN 2.5 E3 PE earth terminal features a 2.5 mm² nominal cross section, three levels and three clamp positions per level. Its green/yellow thermoplastic housing supports push-in connection and DIN rail mounting, with a rated voltage of 500 V.

Technical Details

  • Nominal cross section: 2.5 mm²
  • Color: green/yellow
  • Number of levels: 3
  • Number of clamp positions per level: 3
  • Width/grid dimension: 5.1 mm
  • Insulating housing: PA
  • Inflammability class of insulation material acc. with UL94: V0
  • Mounting method: DIN rail (top hat rail)
  • Terminal blocks for electrical installations: yes
  • Connection type: push-In connection//true
  • Halogen free: yes
  • Rated voltage: 500 V
  • Rated impulse voltage: 6 kV
  • Pollution degree: 3
  • Closing plate required: yes
  • Type of insulation material: thermoplastic
  • Length: 102.7 mm
  • Width: 5.1 mm
  • Height: 58.5 mm
  • Connection type 1: plug-in connection
  • Connection type 2: spring clamp connection
  • Minimum cross section solid: 0.14 mm²
  • Maximum cross section solid: 4 mm²
  • Minimum cross section fine stranded: 0.14 mm²
  • Maximum cross section fine stranded: 2.5 mm²
  • Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
  • Maximum conductor cross section (flex., stranded) with cable end sleeve: 4 mm²
  • Wire strip length: 10 mm
  • Cross section UL: 26-12 AWG
  • Voltage UL: 300 V
  • Cross section CSA: 26-12 AWG
  • Voltage CSA: 300 V



SKU WIE-5D.203.9755.0
MPN 5D.203.9755.0
EAN 4049088718922
