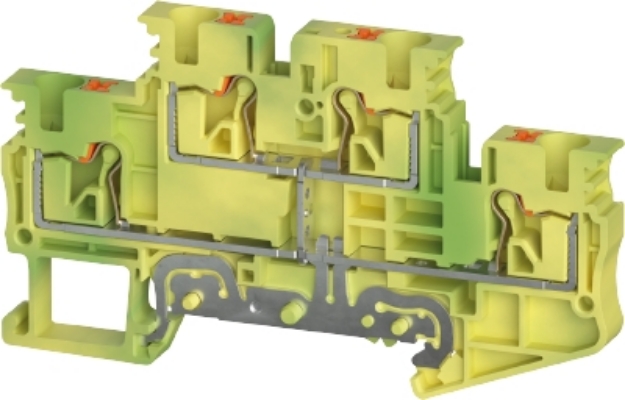

Push Terminal - 4mm - WTPN - Earth

Earth Terminal WTPN 4 E PE

The WTPN 4 E PE earth terminal features a 4 mm² nominal cross section, push-in connections, two levels, and four clamp positions per level. Its green/yellow, halogen-free housing mounts on a DIN rail and supports a rated voltage of 500 V.

Technical Details

• Nominal cross section: 4 mm²
• Color: green/yellow
• Number of levels: 2
• Number of clamp positions per level: 4
• Width/grid dimension: 6.1 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Connection type: push-in connection
• Halogen free: yes
• Rated voltage: 500 V
• Rated impulse voltage: 6 kV
• Pollution degree: 3
• Closing plate required: yes
• Type of insulation material: thermoplastic
• Length: 81 mm
• Width: 6.1 mm
• Height: 47.5 mm
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.2 mm²
• Maximum cross section solid: 6 mm²
• Minimum cross section fine stranded: 0.2 mm²
• Maximum cross section fine stranded: 4 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 0.25 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 4 mm²
• Wire strip length: 12 mm
• Cross section UL: 24-10 AWG
• Voltage UL: 300 V
• Cross section CSA: 24-10 AWG
• Voltage CSA: 300 V

SKU WIE-5D.204.9655.0
MPN 5D.204.9655.0
EAN 4049088706776
