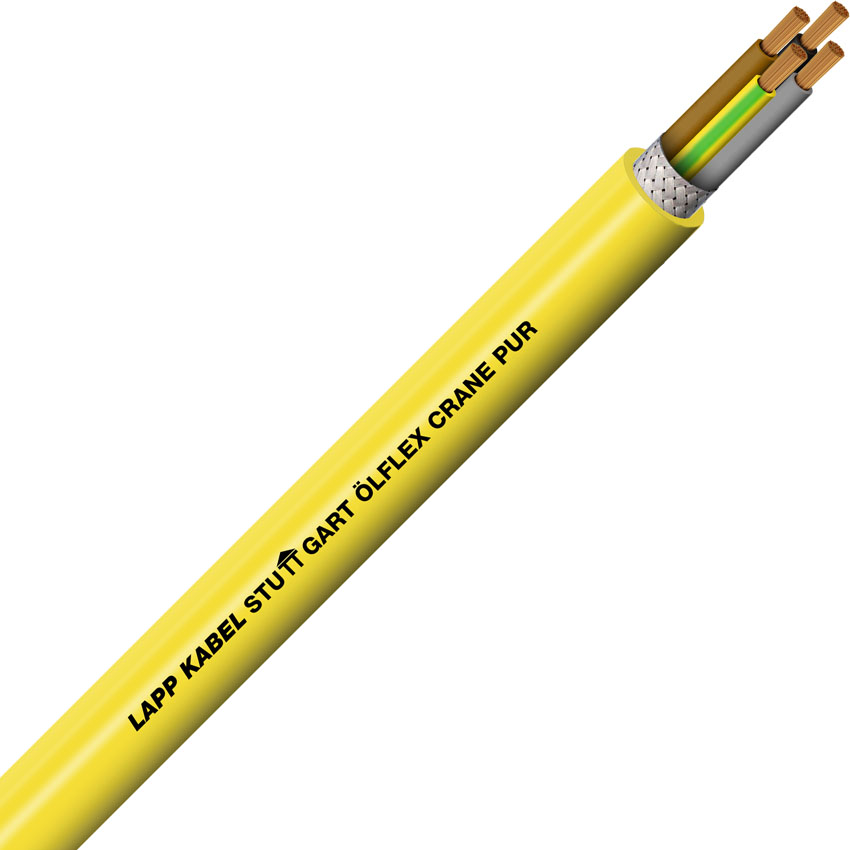

Reeling PUR 4G4

ÖLFLEX® CRANE PUR sheath, halogen-free 4G4 (3 + E)

Free shipping on Web orders over $100

$48.30
(Per/m excl GST)
Global Stock
SKU: LAPP-0045225 Manufacturer part number: 0045225

Benefits

  • Designed with a smaller outer diameter to save space and weight
  • Cost-saving due to the use of smaller drums, guide rollers, as well as drive engines when possible
  • Reeling, unreeling and guiding operations also impose tensile stresses on the cables
  • The central supporting element absorbs the tensile loads that occur, thereby allowing reeling, unreeling and deflection for free-hanging cables even over large distances.
  • Integrated supporting braid prevents undesirable cable twists, and the formation of so-called corkscrew effects

Application range

  • For use in hoists, transport and conveyor
    systems
  • Cables are reeled, unreeled, and guided by roller trains
  • In dry or damp interiors, outdoors, or not more than 2 weeks without interruption in industrial water
  • The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3
  • The assembly and handling guidelines for ÖLFLEX® CRANE cables can be found in the catalogue appendix, technical table T4; for ÖLFLEX® LIFT cables please see the catalogue appendix, technical table T5

Product features

  • Halogen-free and flame-retardant
    (IEC 60332-1-2)
  • Oil-resistant according to EN 60811-404
  • Good chemical, thermal and mechanical-resistance

Product Make-up

  • Conductor made of bare copper wires
  • Core insulation: TPE compound
  • Central supporting element
  • Support braid integrated in the outer sheath
  • Outer sheath: PUR compound, halogen-free

SKU
LAPP-0045225
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Number of Conductors 4
Conductor Size 4mm
Colour Yellow
*
*
*
